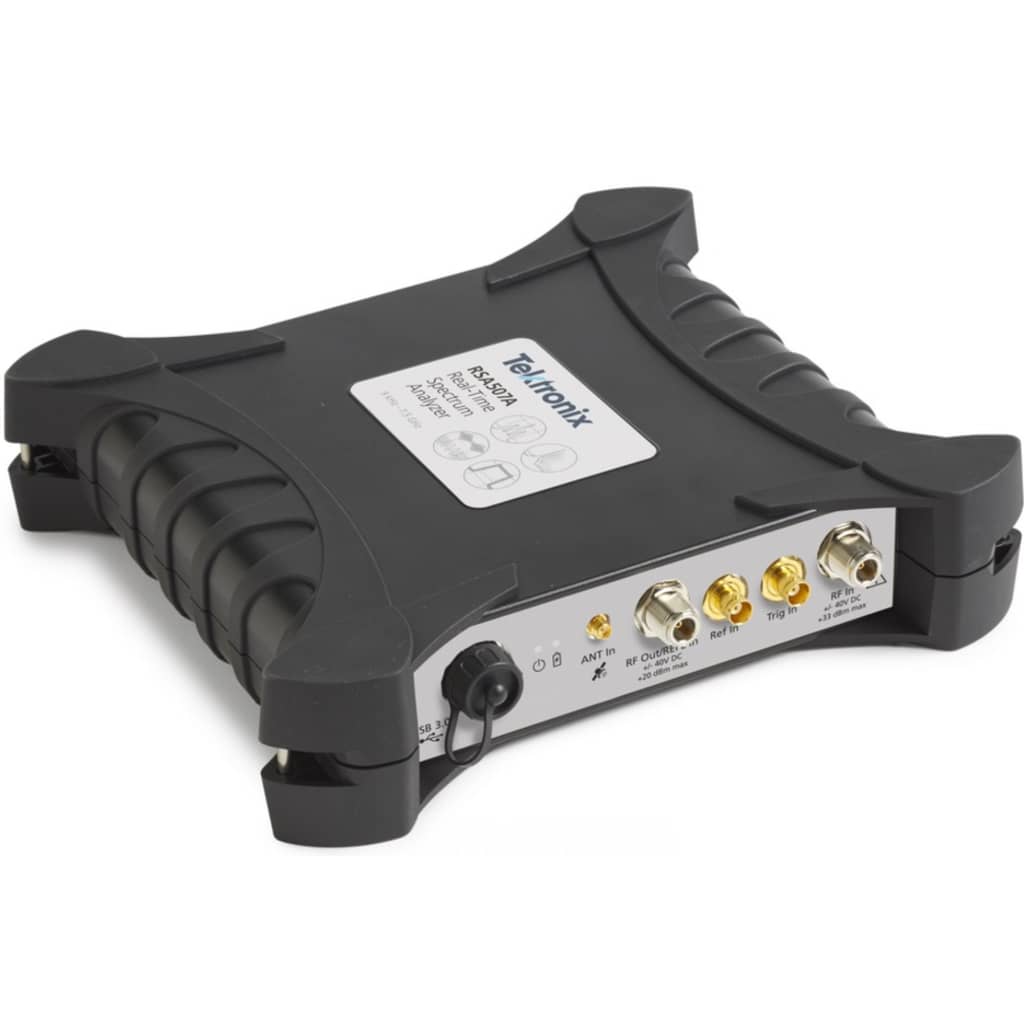

Tektronix RSA500A Series Real Time Spectrum Analyzers

  • 9 kHz to 3.0/7.5/13.6/18.0 GHz frequency range covers a broad range of analysis needs
  • 40 MHz acquisition bandwidth enables real time analysis for transient capture and vector analysis
  • High speed full-span sweeps (70 GHz/sec) for fast setup and discovery
  • 15 μsec minimum signal duration with 100% probability of intercept ensure you see problems first time, every time
  • Standard GPS/GLONASS/Beidou receiver for mapping
  • Optional tracking generator for gain/loss, antenna and cable measurements
  • DataVu-PC software enables multi-unit recording in variable bandwidths
  • Mil-Std 28800 Class 2 environmental, shock and vibration specifications for use in harsh conditions
  • Internal battery for extended field operations
  • SignalVu-PC software offers real time signal processing with DPX® Spectrum/Spectrogram to minimize time spent on transient and interference hunting
  • EMC/EMI pre-compliance and troubleshooting – CISPR detectors, predefined standards, limit lines, easy accessory setup, ambient capture, failure analysis, and report generation
  • Application programming interface included for development of custom programs
  • Accessories including tablet PC, calibration kits, adapters and phase-stable cables offer a complete field solution for interference hunting and transmitter maintenance
  • Three year warranty

The RSA500 Series saves you time and helps you succeed

The RSA500 series was built to bring real-time spectrum analysis to solving the problems of spectrum managers, interference hunters and network maintenance personnel who need to track down hard to find interferers, maintain RF networks and keep records of their efforts. The heart of the system is the USB-based RF spectrum analyzer that captures 40 MHz real-time bandwidths with great fidelity in harsh environments. With 70 dB spurious free dynamic range and frequency coverage to 18.0 GHz, all signals of interest can be examined with high confidence in your measurement results. The USB form factor moves the weight of the instrument off of your hands, and replaces it with a lightweight Windows tablet or laptop. Holding a light PC instead of a heavy spectrum analyzer means you can move faster, for longer, and get your work done faster.

The optional tracking generator enables gain/loss measurements for quick tests of filters, duplexers and other network elements, and you can add cable and antenna measurements of VSWR, return loss, distance to fault and cable loss as needed.

SignalVu-PC software offers rich analysis capability in the field

The RSA500 series operates with SignalVu-PC, a powerful program used as the basis of Tek’s traditional spectrum analyzers. SignalVu-PC offers a deep analysis capability previously unavailable in high performance battery-operated solutions. Real-time processing of the DPX® spectrum/spectrogram is enabled in your PC, further reducing the cost of hardware. Customers who need programmatic access to the instrument can choose either the SignalVu-PC programmatic interface or use the included application programming interface (API) that provides a rich set of commands and measurements directly. Basic functionality of the free SignalVu-PC program is far from basic. Base version measurements are shown below.

The RSA500A combined with SignalVu-PC offers advanced field measurements

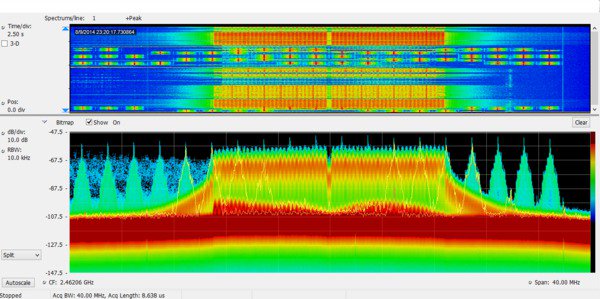

With 40 MHz of real-time bandwidth, the unique DPX® spectrum/spectrogram shows you every instance of an interfering or unknown signal, even down to 15 μs in duration. The following image shows a WLAN transmission (green and orange), and the narrow signals that repeat across the screen are a Bluetooth access probe. The spectrogram (upper part of the screen) clearly separates these signals in time to show any signal collisions.

RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-9-L



Finding unexpected signals is easy with unattended mask monitoring. A mask can be created on the DPX® spectrum display, and actions taken upon every violation, including stop, save a picture, save acquisition, or send an audible alert. In the illustration below, a mask violation has occurred in red on the mask, and a picture of the screen was saved as a result. Mask testing can be used for unattended monitoring and when playing back recorded signals, enabling testing for different violations on the same signals.

RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-10-L

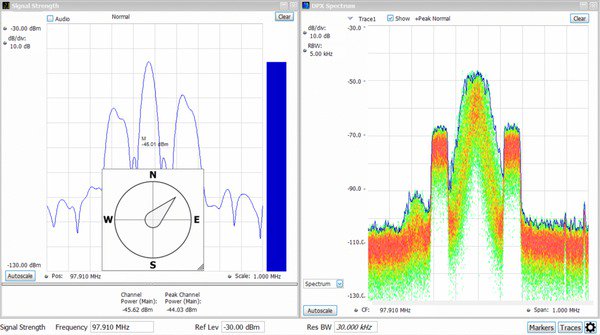

Direction finding and signal strength measurements are quick and easy with the standard SignalVu-PC software. In the illustration below, using the available Alaris smart antenna, a compass continuously monitors antenna direction while the signal strength monitor performs measurements and provide audio indication of signal strength. When combined with the MAP option for SignalVu-PC, signal strength and azimuth are automatically placed on the map of your choice.

RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-11-L



The tracking generator (Option 04 on the RSA500) is controlled via SignalVu-PC. A bandpass filter response from 800 MHz to 3 GHz is shown below. Option SV60 adds return loss, cable loss, and distance to fault.

RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-12-L

SignalVu-PC application-specific licenses

SignalVu-PC offers a wealth of application-oriented options available either installed on the instrument, or as a floating license that can be moved between instruments or attached to your PC. Applications include:

  • General-purpose modulation analysis (27 modulation types including 16/32/64/256 QAM, QPSK, O-QPSK, GMSK, FSK, APSK)
  • EMC/EMI analysis with CISPR peak, quasi-peak, and average detectors
  • Buetooth® analysis of Basic Rate, Low Energy, and Bluetooth 5. Some support of Enhanced Data Rate
  • P25 analysis of phase I and phase 2 signals
  • WLAN analysis of 802.11a/b/g/j/p, 802.11n, 802.11ac
  • LTE™ FDD and TDD Base Station (eNB) Cell ID and RF measurements
  • Mapping
  • Pulse analysis
  • AM/FM/PM/Direct Audio Measurement including SINAD, THD
  • Playback of recorded files, including complete analysis in all domains
  • Signal classification and survey

See the separate SignalVu-PC data sheet for complete details and ordering information. Selected applications are illustrated below.

EMC/EMI

EMI pre-compliance and diagnostic measurements are easy with the instrument and SignalVu-PC. Transducer, antenna, preamplifier, and cable gain/loss can be entered and stored in correction files, and the standard spurious measurement feature of SignalVu-PC can be used to establish limit lines for your test. The following illustration shows a test from 30MHz to 960 MHz against the FCC Part 15 Class A limit shown shaded. The blue trace is the capture of Ambient. Violations are recorded in the results table below the graph. CISPR quasi peak and average detectors can be added with option SVQP.

The EMC pre-compliance solution can be added with option EMCVU. It supports many predefined limit lines. It also adds a wizard for easy setup of recommended antennas, LISN, and other EMC accessories with a one-button push. When using the new EMC-EMI display, you can accelerate the test by applying the time consuming quasi peak only on failures. This display also provides a push-button ambient measurement. The Inspect tool lets you measure frequencies of interest locally, removing the need for scanning.

RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-13-L_0
Bluetooth

Two new options have been added to help with Bluetooth SIG standardbase transmitter RF measurements in the time, frequency and modulation domains. Option SV27 supports Basic Rate and Low Energy Transmitter measurements defined by RF.TS.4.2.0 and RF-PHY.TS.4.2.0 Test Specification. It also demodulates and provides symbol information for Enhanced Data Rate packets. Option SV31 supports Bluetooth 5 standards (LE 1M, LE 2M, LE Coded) and measurements defined in the Core Specification. Both options also decode the physical layer data that is transmitted and color-encode the fields of packet in the Symbol Table for clear identification.

RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-14-L_0

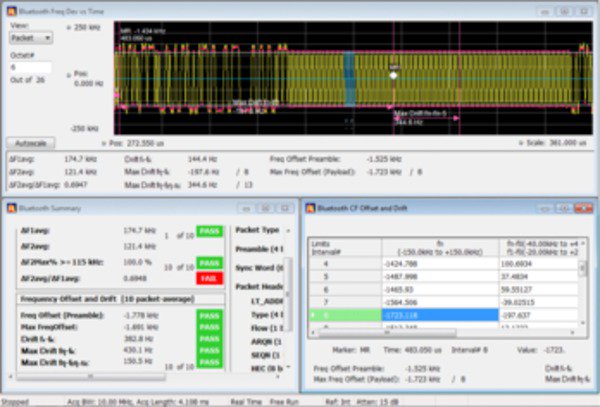

Pass/Fail results are provided with customizable limits. Measurement below shows deviation vs. time, frequency offset and drift and a measurement summary with Pass/Fail results.

RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-15-L_0
APCO 25

SignalVu-PC application SV26 enables quick, standards-based transmitter health checks on APCO P25 signals. The following image shows a Phase II HCPM signal being monitored for anomalies with the spectrogram while performing transmitter power, modulation and frequency measurements to the TIA-102 standards specification.

RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-16-L_0

LTE

Application SV28 enables the following LTE base station transmitter measurements:

  • Cell ID
  • Channel power
  • Occupied bandwidth
  • Adjacent channel leakage ratio (ACLR)
  • Spectrum emission mask (SEM)
  • Transmitter off power for TDD
  • Reference Signal (RS) Power

The measurements follow the definition in 3GPP TS Version 12.5 and support all base station categories, including picocells and femtocells. Pass/Fail information is reported and all channel bandwidths are supported.

The Cell ID preset displays the Primary Synchronization Signal (PSS) and the Secondary Synchronization Signal (SSS) in a Constellation diagram. It also provides Frequency Error.

The illustration below shows spectral monitoring with the spectrogram display combined with a Cell ID/Constellation, Spectrum Emission Mask and ACLR measurements.

RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-17-L_0

Mapping

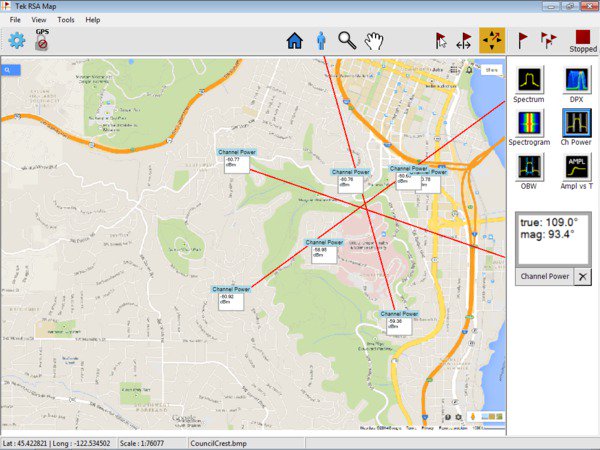

The SignalVu-PC MAP application enables interference hunting and location analysis. Locate interference with an azimuth function that lets you draw a line or an arrow on a mapped measurement to indicate direction, or use the available Alaris smart antenna with automated azimuth placement.

RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-18-L_0
Signal survey/classification

Application SV54 enables expert systems guidance to aid the user in classifying signals. You can quickly create a spectral region of interest, enabling users to identify and sort signals efficiently. The spectral profile mask, when overlaid on top of a trace, provides signal shape guidance while frequency, bandwidth, and channel number are displayed allowing for fast classification. WLAN, GSM, W-CDMA, CDMA, Bluetooth standard and enhanced data rate, LTE FDD and TDD, ATSC and other signals can be quickly and simply identified. Databases can be imported from your H500/RSA2500 signal database library for easy transition to the new software base.

A typical signal survey is show below. The survey is of a portion of the TV broadcast band, and 7 regions have been declared as either Permitted, Unknown, or Unauthorized, as indicated by the color bars for each region. In the detail illustration, a single region has been selected, and since we’ve declared this to be an ATSC video signal, the spectrum mask for the ATSC signal is shown overlaid in the region. The signal is a close match to the spectrum mask, including the vestigial carrier at the lower side of the signal, characteristic of ATSC broadcasts.

RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-19-L_0



RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-20-L_0



Return loss/VSWR, distance to fault, cable loss

Perform maintenance and troubleshooting tasks with ease. When equipped with the option 04 tracking generator, the RSA500A series with application license SV60xx-SVPC makes one-port measurements on cables, devices and antennas.

RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-21-L_0



Return loss vs distance for a cable with an inserted barrel and an extension cable. The point at M2 (17.638 m, MR) is the barrel connector and the point marked by M1 at 19.725 m is the end of the cable.

RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-22-L_0



Return loss of a bandpass filter measured from 700 MHz to 2.6 GHz. Markers have been placed a 1.48 GHz (-34.4 dB return loss) and at 1.73 GHz (-11.68 dB return loss), indicating the best and worse match in the passband of the filter.

Playback

Application SV56, Playback of recorded signals, can reduce hours of watching and waiting for a spectral violation to minutes at your desk reviewing recorded data.

Recording length is limited only by storage media size, and recording is a basic feature included in SignalVu-PC. SignalVu-PC application SV56 (Playback) allows for complete analysis by all SignalVu-PC measurements, including DPX Spectrogram. Minimum signal duration specifications are maintained during playback. AM/FM audio demodulation can be performed. Variable span, resolution bandwidth, analysis length, and bandwidth are all available. Frequency mask testing can be performed on recorded signals, with actions on mask violation including beep, stop, save trace, save picture, and save data. Portions of the playback can be selected and looped for repeat examination of signals of interest. Playback can be skip-free, or time gaps can be inserted to reduce review time.

Clock time of the recording is displayed in the spectrogram markers for correlation to real world events. In the illustration below, the FM band is being replayed, with a mask applied to detect spectral violations, simultaneous with listening to the FM signal at the center frequency of 92.3 MHz.

RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-23-L_0



DataVu-PC for multi-instrument recording and analysis of large recordings

DataVu-PC software can control two spectrum analyzers simultaneously with independent settings. This allows you to monitor a wide span, while recording at up to 40 MHz bandwidth at any frequency in the range of the instrument. Once recorded, DataVu-PC can find and mark signals of interest based on amplitude and frequency-mask characteristics, eliminating the need for manual inspection of long recordings. Pulse measurements are available on up to 2,000,000 pulses.

Instrument controller for USB spectrum analyzers

For field operations, a complete solution requires a Windows Tablet or laptop for instrument operation, record keeping and communication. Tektronix recommends the Panasonic FZ-G1 tablet computer for controlling the RSA500 series and as a standalone unit.

RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-24-L_0



The Panasonic FZ-G1 tablet computer is sold separately and is available for purchase from Panasonic athttps://na.panasonic.com/us/computers-tablets-handhelds/tablets/tablets/toughbook-g1and a variety of third party vendors. Tektronix recommends the FZ-G1 over other tablets because of its performance, portability, and ruggedized form-factor and it has been tested to work with all USB RSA products.

Key specifications, instrument controller
  • Windows 10 Pro 64-bit operating system
  • Intel(R) CoreTM i5-6300U vProTM 2.4-3.0 GHz Processor
  • 8GB RAM
  • 256 GB Solid State Drive
  • 10.1″ (25.6 cm) Daylight-readable screen
  • 10-point Multi Touch+ Digitizer screen plus included pen interface
  • USB 3.0 + HDMI Ports, 2nd USB Port
  • Wi-Fi, Bluetooth® and 4G LTE Multi Carrier Mobile Broadband with Satellite GPS
  • MIL-STD-810G certified (4′ drop, shock, vibration, rain, dust, sand, altitude, freeze/thaw, high/low temperature, temperature shock, humidity, explosive atmosphere)
  • IP65 certified sealed all-weather design
  • Integrated microphone
  • Integrated speaker
  • On-screen and button volume and mute controls
  • Integrated battery backup for hot-swap of battery packs
  • 3-year Warranty with Business Class Support (provided by Panasonic in your region)

Smart antenna for interference hunting

Tektronix offers the Alaris DFA-0047 smart antenna with built-in USB compass for direction finding and interference hunting applications. Full details on the antenna are available in the Alaris data sheet available on Tek.com by searching on Alaris. A summary of features and specifications is shown below.

  • Frequency Range: 20 MHz – 8.5 GHz
    • 9 kHz-20 MHz extension available(0.3m loop antenna), order DF-A0047-01
  • Trigger control for one-hand operation with functions for:
    • Preamp on/off
    • Band switch
    • Push to measure with SignalVu-PC with MAP option
  • Standard armrest extension for ease in long interference hunting sessions
  • Transit case available



RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-25-L_0

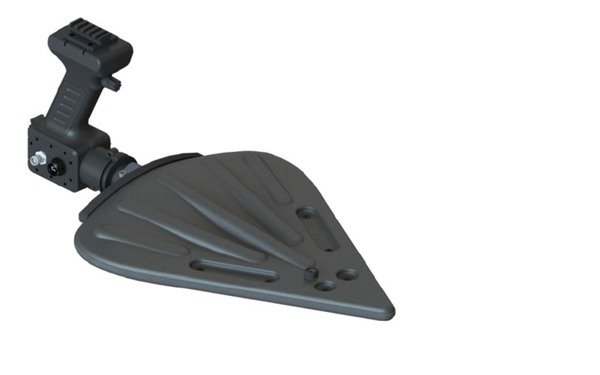

Alaris direction-finding smart antenna.

Calibration kits, phase-stabilized cables, adapters, antennas and other accessories

Tektronix offers a variety of accessories to simplify your shopping for the complete solution for field test. See the ordering information section for further details.

RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-26-L_0

RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-27-L_0

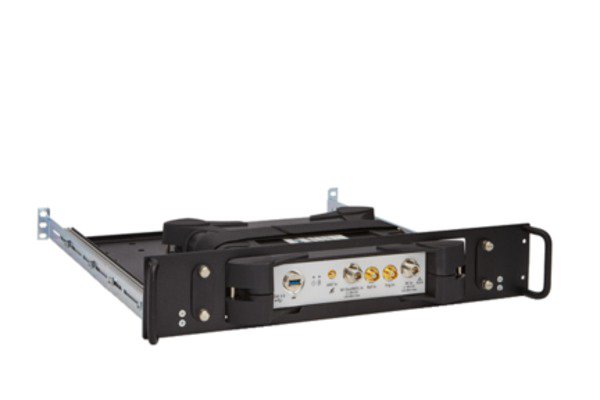

The RSA56RACK holds one RSA500A for rackmount applications

RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-28-L_0

The RSA500TRANSIT case has room for the instrument in its soft case, a tablet PC, power supply and accessories.

RSA500A-Real-Time-Spectrum-Analyzer-Datasheet-EN_US-29-L_0

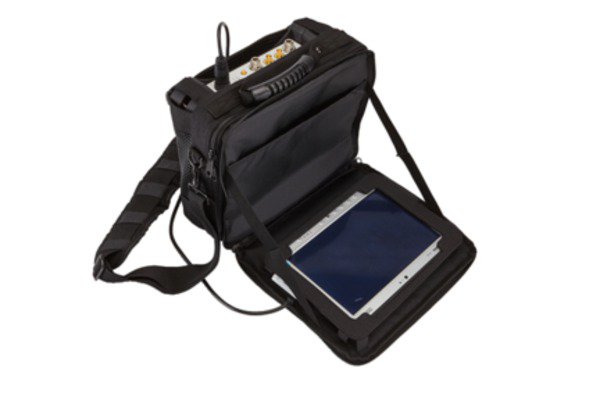

The soft case PN 016-2109-01 is standard with every RSA500A and has room for the unit, a tablet PC and accessories

Library

Download Datasheet



Ordering Info

Instrument models

RSA503A: USB real time spectrum analyzer, 9 kHz – 3.0 GHz, 40 MHz acquisition bandwidth

RSA507A: USB real time spectrum analyzer, 9 kHz – 7.5 GHz, 40 MHz acquisition bandwidth

RSA513A: USB real time spectrum analyzer, 9 kHz – 13.6 GHz, 40 MHz acquisition bandwidth

RSA518A: USB real time spectrum analyzer, 9 kHz – 18.0 GHz, 40 MHz acquisition bandwidth

The RSA500 series instruments require a PC with Windows 7, Windows 8/8.1, or Windows 10, 64-bit operating system and a USB 3.0 connection. 8 GB RAM and 20 GB free drive space is required for installation of SignalVu-PC. For full performance of the real time features of the RSA500, an Intel Core i7 4th generation processor is required. Processors of lower performance can be used, with reduced real-time performance. Storage of streaming data requires that the PC be equipped with a drive capable of streaming storage rates of 300 MB/sec.

Includes: USB 3.0 cable (2 M), A-A connection, screw lock, shoulder strap, carrying case (with room for unit, tablet, accessories), quick-start manual (printed), connector covers, WFM200BA Li-Ion rechargeable battery pack, WFM200BA Li-Ion battery pack instructions (printed), AC power adapter, power cord (see power plug options), USB memory device with SignalVu-PC, API and documentation files. A GPS antenna is not included with the instrument. See Accessories for available GPS antennas.

Instrument options
Option Description
Option 04 Tracking generator:
10 MHz to 3 GHz (RSA503A)
10 MHz to 7.5 GHz (RSA507A, RSA513A, RSA518A)

Licenses

A variety of optional, licensed applications are available for purchase for SignalVu-PC. These licenses can be associated with and stored on either your PC or any RSA300 series, RSA500 series, RSA600 series, and RSA7100A spectrum analyzers. Licenses can be purchased as an option to your hardware or separately as a Node-locked or a Floating license.

Contact your local Tektronix Account Manager to purchase a license. If your purchased license is not ordered as an option to your instrument, you will receive an email with a list of the applications purchased and the URL to the Tektronix Product License Web page, where you will create an account and can then manage your licenses using the Tektronix Asset Management System (AMS): http://www.tek.com/products/product-license.

AMS provides an inventory of the license(s) in your account. It enables you to check out or check in a license and view the history of licenses.

Optional applications are enabled by one of the following license types.

License type Description
Node locked license (NL) purchased as an option to your instrument This license i s initially assigned to a specific host id, which can be either a PC or an instrument. It can be reassociated to either a PC or another spectrum analyzer two times using Tek AMS.
When associated with an instrument, this license is factory-installed on that instrument at the time of manufacture. It will be recognized by any PC operating with SignalVu-PC when the instrument is connected. However, the licensed application is deactivated from the PC if the licensed instrument is disconnected.
This is the most common form of licensing, as it simplifies management of your applications.
Node locked license (NL) purchased separately This license is initially assigned to a specific host id, which can be either a PC or an instrument. It can be reassociated to either a PC or instrument two times using Tek AMS.
This license is delivered via email and is associated with either your PC or with an instrument when you install the license.
This license should be purchased when you want your license to stay on your PC, or if you have an existing USB instrument on which you would like to install a license.
Floating license(FL) purchased separately This license can be moved between different host ids, which can be either PCs or instruments. It can be reassociated to different PCs or instruments an unlimited number of times using Tek AMS. This license is delivered via email and is associated with either your PC or with an instrument when you install the license.
This is the most flexible license and is recommended in applications where the license needs to be moved frequently.
SignalVu-PC application-specific modules

The following SignalVu-PC license options are available.

Application license Description
SVANL-SVPC AM/FM/PM/Direct Audio Analysis – Node Locked License
SVAFL-SVPC AM/FM/PM/Direct Audio Analysis – Floating License
SVTNL-SVPC Settling Time (frequency and phase) measurements – Node Locked License
SVTFL-SVPC Settling Time (frequency and phase) measurements – Floating License
SVMNL-SVPC General Purpose Modulation Analysis to work with analyzer of acquisition bandwidth <= 40 MHz or MDO – Node Locked License
SVMFL-SVPC General Purpose Modulation Analysis to work with analyzer of acquisition bandwidth <= 40 MHz or MDO- Floating License
SVPNL-SVPC Pulse Analysis to work with analyzer of acquisition bandwidth <= 40 MHz or MDO – Node Locked License
SVPFL-SVPC Pulse Analysis to work with analyzer of acquisition bandwidth <= 40 MHz or MDO- Floating License
SVONL-SVPC Flexible OFDM Analysis – Node Locked License
SVOFL-SVPC Flexible OFDM Analysis – Floating License
SV23NL-SVPC WLAN 802.11a/b/g/j/p measurement – Node Locked License
SV23FL-SVPC WLAN 802.11a/b/g/j/p measurement – Floating License
SV24NL-SVPC WLAN 802.11n measurement (requires SV23) – Node Locked License
SV24FL-SVPC WLAN 802.11n measurement (requires SV23) – Floating License
SV25NL-SVPC WLAN 802.11ac measurement to work with analyzer of acquisition bandwidth <= 40 MHz (requires SV23 and SV24) or MDO – Node Locked License
SV25FL-SVPC WLAN 802.11ac measurement to work with analyzer of acquisition bandwidth <= 40 MHz (requires SV23 and SV24) or MDO – Floating License
SV26NL-SVPC APCO P25 measurement – Node Locked License
SV26FL-SVPC APCO P25 measurement – Floating License
SV27NL-SVPC Bluetooth measurement to work with analyzer of acquisition bandwidth <= 40 MHz or MDO – Node Locked License
SV27FL-SVPC Bluetooth measurement to work with analyzer of acquisition bandwidth <= 40 MHz or MDO- Floating License
SV31NL-SVPC Bluetooth 5 measurements (requires SV27) – Node Locked License
SV31FL-SVPC Bluetooth 5 measurements (requires SV27) – Floating License
MAPNL-SVPC Mapping – Node Locked License
MAPFL-SVPC Mapping – Floating License
SV56NL-SVPC Playback of recorded files – Node Locked License
SV56FL-SVPC Playback of recorded files – Floating License
CONNL-SVPC SignalVu-PC connection to the MDO4000B series mixed-domain oscilloscopes – Node Locked License
CONFL-SVPC SignalVu-PC connection to the MDO4000B series mixed-domain oscilloscopes – Floating License
SV2CNL-SVPC WLAN 802.11a/b/g/j/p/n/ac and live link to MDO4000B to work with analyzer of acquisition bandwidth <= 40 MHz – Node Locked License
SV2CFL-SVPC WLAN 802.11a/b/g/j/p/n/ac and live link to MDO4000B to work with analyzer of acquisition bandwidth <= 40 MHz – Floating License
SV28NL-SVPC LTE Downlink RF measurement to work with analyzer of acquisition bandwidth <= 40 MHz or MDO – Node Locked License
SV28FL-SVPC LTE Downlink RF measurement to work with analyzer of acquisition bandwidth <= 40 MHz or MDO – Floating License
SV54NL-SVPC Signal survey and classification – Node Locked License
SV54FL-SVPC Signal survey and classification – Floating License
SV60NL-SVPC Return loss, distance to fault, VSWR, cable loss – Node Locked License (requires Option 04 on RSA500A/600A)
SV60FL-SVPC Return loss, distance to fault, VSWR, cable loss – Floating License (requires Option 04 on RSA500A/600A)
SV30NL-SVPC WiGig 802.11ad measurements – Node Locked License (only for offline analysis)
SV30FL-SVPC WiGig 802.11ad measurements – Floating License (only for offline analysis)
EMCVUNL-SVPC EMC pre-compliance and troubleshooting (includes EMI CISPR detectors) – Node Locked License
EMCVUFL-SVPC EMC pre-compliance and troubleshooting (includes EMI CISPR detectors) – Floating License
SVQPNL-SVPC EMI CISPR detectors – Node Locked License
SVQPFL-SVPC EMI CISPR detectors – Floating License
EDUFL-SVPC Education-only version of all modules for SignalVu-PC – Floating License
Recommended accessories

Tektronix offers a wide variety of adapters, attenuators, cables, impedance converters, antennas and other accessories for the RSA500A series.

General purpose RF cables
012-1738-00
Cable,50 Ω, 40 inch,type-N(m) to type-N(M)
012-0482-00
Cable, 50 Ω, BNC (m) 3 foot (91 cm)
174-4977-00
Cable, 50 Ω, straight type-N (m) and angled type-N (m) connector, 1.6 foot (50 cm)
174-5002-00
Cable, 50 Ω, type-N (m) to type-N (m) connector, 3 foot (91 cm)
Adapters
103-0045-00

Adapter, coaxial, 50 Ω type-N(m) to type-BNC(f)

013-0410-00
Adapter, coaxial, 50 Ω type-N (f) to type-N (f)
013-0411-00
Adapter, coaxial, 50 Ω type-N (m) to type-N (f)
013-0412-00
Adapter, coaxial, 50 Ω, type-N(m) to type-N(m)
013-0402-00
Adapter, coaxial, 50 Ω type-N (m) to type-N 7/16(m)
013-0404-00
Adapter, coaxial, 50 Ω type-N(m) to type-7/16 (f)
013-0403-00
Adapter, coaxial, 50 Ω type-N(m) to type DIN 9.5(m)
013-0405-00
Adapter, coaxial, 50 Ω type-N(m) to type-DIN 9.5(f)
013-0406-00
Adapter, coaxial, 50 Ω type-N(m) to type-SMA(f)
013-0407-00
Adapter, coaxial, 50 Ω type-N(m) to type-SMA(m)
013-0408-00
Adapter, coaxial, 50 Ω type-N(m) to type-TNC(f)
013-0409-00
Adapter, coaxial, 50 Ω type-N(m) to type-TNC(m)
Attenuators and 50/75 Ω pads
013-0422-00
Pad, 50/75 Ω, minimum loss, type-N(m) 50 Ω to type-BNC(f) 75 Ω
013-0413-00
Pad, 50/75 Ω, minimum loss, type-N(m) 50 Ω to type-BNC(m) 75 Ω
013-0415-00
Pad, 50/75 Ω, minimum loss, type-N(m) 50 Ω to type-F(m) 75 Ω
015-0787-00
Pad, 50/75 Ω, minimum loss, type-N(m) 50 Ω to type-F(f) 75 Ω
015-0788-00
Pad, 50/75 Ω, minimum loss, type-N(m) 50 Ω to type-N(f) 75 Ω
011-0222-00
Attenuator, fixed, 10 dB, 2 W, DC-8 GHz, type-N(f) to type-N(f)
011-0223-00
Attenuator, fixed, 10 dB, 2 W, DC-8 GHz, type-N(m) to type-N(f)
011-0224-00
Attenuator, fixed, 10 dB, 2 W, DC-8 GHz, type-N(m) to type-N(m)
011-0228-00
Attenuator, fixed, 3 dB, 2 W, DC-18 GHz, type-N(m) to type-N(f)
011-0225-00
Attenuator, fixed, 40 dB, 100 W, DC-3 GHz, type-N(m) to type-N(f)
011-0226-00
Attenuator, fixed, 40 dB, 50 W, DC-8.5 GHz, type-N(m) to type-N(f)
Antennas
119-8733-00
Antenna, Active. GPS & GLONASS, magnetic mount, 5M cable, 3V, 8ma SMA connector, RG-174 Cable
119-8734-00

Antenna, Active, GPS and Beidou, magnetic mount, 5M cable, 3V, 8ma SMA connector, RG-174 Cable

DF-A0047

Directional antenna, 20-8500 MHz, with electronic compass and preamp

DF-A0047-01
Frequency range extension for DF-A0047 directional antenna, 9 kHz-20 MHz
DF-A0047-C1
DF-A0047 antenna and DF-A0047-01 extension
016-2107-00
Transit case for DF-A0047 and DF-A0047-01
119-6594-00
Yagi antenna, 825-896 MHz forward gain (over half-wave dipole): 10 dB
119-6595-00
Yagi antenna, 895-960 MHz forward gain (over half-wave dipole): 10 dB
119-6596-00
Yagi antenna, 1850-1990 MHz forward gain (over half-wave dipole): 9.3 dB
119-6597-00
Beam antenna, 1850 to 1990 MHz
119-6970-00
Magnetic mount antenna, 824 MHz to 2170 MHz (requires adapter 103-0449-00)
Filters, probes, demonstration board
119-7246-00
Pre-filter, general purpose, 824 MHz to 2500 MHz, type-N (f) connector
119-7426
Pre-filter, general purpose, 2400 MHz to 6200 MHz, type-N (f) connector
119-4146-00
EMCO E/H-field probes
E/H field probes, lower cost alternative
Available from Beehive http://beehive-electronics.com/
RSA-DKIT
RSA Version 3 demo board with N-BNC adapter, case, antenna, instructions
011-0227-00
Bias-T, type N(m) RF, type N(f) RF+DC, BNC(f) Bias, 1 W, 0.5 A, 2.5 MHz-6 GHz
EMC accessories
EMI-DEBUG-HWPARTS
Bundle of EMI accessories for debug (includes EMI-NF-Probe & EMI-NF-AMP)
EMI-RE-HWPARTS
Bundle of EMI accessories for radiated pre-compliance test (includes: EMI-BICON-ANT, EMI-CLP-ANT, EMI-PREAMP, EMI-TRIPOD, CABLE-5M, CABLE-1M)
EMI-BICON-ANT
25 MHz to 300 MHz Biconical antenna
EMI-CLP-ANT
300 MHz to 1 GHz Compact Log Periodic antenna
EMI-PREAMP
1 MHz to 1 GHz Preamplifier
EMI-TRIPOD
Antenna Tripod 0.8 to 1.5 m
EMI-LISN50uH-US
50uH AC line impedance stabilization network to test devices that use a US (United States) NEMA 5-15 power plug, 120V Max
EMI-LISN50uH-EU
50uH AC line impedance stabilization network to test devices that use an EU (European) Schuko CE7/4 power plug, 240V Max
EMI-LISN50uH-GB
50uH AC line impedance stabilization network to test devices that use a GB (Great Britian) BS1363 power plug, 240V Max
EMI-LISN5uH
5uH DC line impedance stabilization network
EMI-NF-PROBE
Near Field Probe set
EMI-TRANS-LIMIT
Transient Limiter 150 kHz to 30 MHz
CABLE-1M
Cable, 1 m
CABLE-3M
Cable, 3 m
CABLE-5M
Cable, 5 m
EMI-NF-AMP
Near Field Probe Amplifier
Chargers, Additional batteries, Cables, Cases
RSA5600RACK
Rackmount for RSA500 and RSA600 series. Holds 1 RSA500A or 2 RSA600A models.
WFM200BA
Replacement battery pack for RSA500A series
WFM200BC
External battery charger for WFM200BA, charges two batteries
016-2109-01
Additional soft carry-case with shoulder strap
174-6810-00
Additional USB 3.0 cable (2 M), A-A connection, screw lock
Tracking generator accessories

A variety of calibration kits and phase-stabilized cables are available for the RSA500 tracking generator when used with the optional cable and antenna measurements software.

Calibration kits can be used to improve the factory calibration of the tracking generator when equipped with application SV60-Return loss, VSWR, cable loss, and distance to fault.

These phase-stabilized cables are high performance cables that are phase-stable to +- 2 degrees at 7.5 GHz, with return loss less than -20 dB. Velocity constant is 0.78. Loss at 7.5 GHz specified to be less than -1.05 dB (0.6 m), -1.61 dB (1.0 m), -2.30 dB (1.5m) (all values nominal).

Calibration kits
CALOSLNM
Calibration kit, 3-in-1, open, short, load, DC to 6 GHz, Type-N(m), 50 ohm
CALOSLNF
Calibration kit, 3-in-1, open, short, load, DC to 6 GHz, Type-N(f), 50 ohm
CALOSLNF
Calibration kit, 3-in-1, open, short, load, DC to 6 GHz, 7/16 DIN(m)
CALOSL716F
Calibration kit, 3-in-1, open, short, load, DC to 6 GHz, 7/16 DIN(f)
CALSOLT35F
Calibration kit, 4-in-1 3.5 mm (f) short, open, load, through, 13 GHz
CALSOLT35M
Calibration kit, 4-in-1 3.5 mm (m) short, open, load, through, 13 GHz
CALSOLTNF
Calibration kit, 4-in-1 type-N (f) short, open, load, through, 9 GHz
CALSOLTNM
Calibration kit, 4-in-1 type-N (m) short, open, load, through, 9 GHz
CALSOLT716F
Calibration kit, 4-in-1 7/16 (f) short, open, load, through, 6 GHz
CALSOLT716M
Calibration kit, 4-in-1 7/16 (m) short, open, load, through, 6 GHz
Phase-stabilized cables
012-1745-00
Type-N (m) to type-N (f), 5 ft or 1.5 m
012-1746-00
Type-N(m) to type-N(m), 5 ft or 1.5 m
012-1747-00
Type-N(m) to 7/16(f), 60 cm (23.6 in.)
012-1748-00
Type-N(m) to 7/16(f), 3.28 ft or 1 m
012-1749-00
Type-N(m) to 7/16(f), 5 ft or 1.5 m
012-1750-00
Type-N(m) to 7/16(m), 3.28 ft or 1 m
012-1751-00
Type-N(m) to 7/16(m), 5 ft or 1.5 m
012-1752-00
Type-N(m) to 7/16(m), 60 cm (23.6 in.)
012-1753-00
Type-N(m) to DIN 9.5(f), 60 cm (23.6 in.)
012-1754-00
Type-N(m) to DIN 9.5(f), 3.28 ft or 1 m
012-1755-00
Type-N(m) to DIN 9.5(f), 5 ft or 1.5 m
012-1756-00
Type-N(m) to DIN 9.5(m), 3.28 ft or 1 m
012-1757-00
Type-N(m) to DIN 9.5(m), 5 ft or 1.5 m
012-1758-00
Type-N(m) to DIN 9.5(m), 60 cm (23.6 in.)
012-1759-00
Type-N(m) to TNC(f), 3.28 ft or 1 m
012-1760-00
Type-N(m) to TNC(f), 5 ft or 1.5 m
012-1761-00
Type-N(m) to TNC(f), 60 cm (23.6 in.)
012-1762-00
Type-N(m) to TNC(m), 60 cm (23.6 in.)
012-1763-00
Type-N(m) to TNC(m), 3.28 ft or 1 m
012-1764-00
Type-N(m) to TNC(m), 5 ft or 1.5 m
012-1765-00
Type-N(m) to type-N(f), 60 cm (23.6 in.)
012-1766-00
Type-N(m) to type-N(f), 3.28 ft or 1 m
012-1767-00
Type-N(m) to type-N(m), 3.28 ft or 1 m
012-1768-00
Type-N(m) to type-N(m), 60 cm (23.6 in.)
012-1769-00
Type-N(m) to type-SMA(f), 60 cm (23.6 in.)
012-1770-00
Type-N(m) to type-SMA(f), 3.28 ft or 1 m
012-1771-00
Type-N(m) to type-SMA(f), 5 ft or 1.5 m
012-1772-00
Type-N(m) to type-SMA(m) 60 cm (23.6 in.)
012-1773-00
Type-N(m) to type-SMA(m), 3.28 ft or 1 m
012-1774-00
Type-N(m) to type-SMA(m), 5 ft or 1.5 m
Scroll to Top

Request more information
