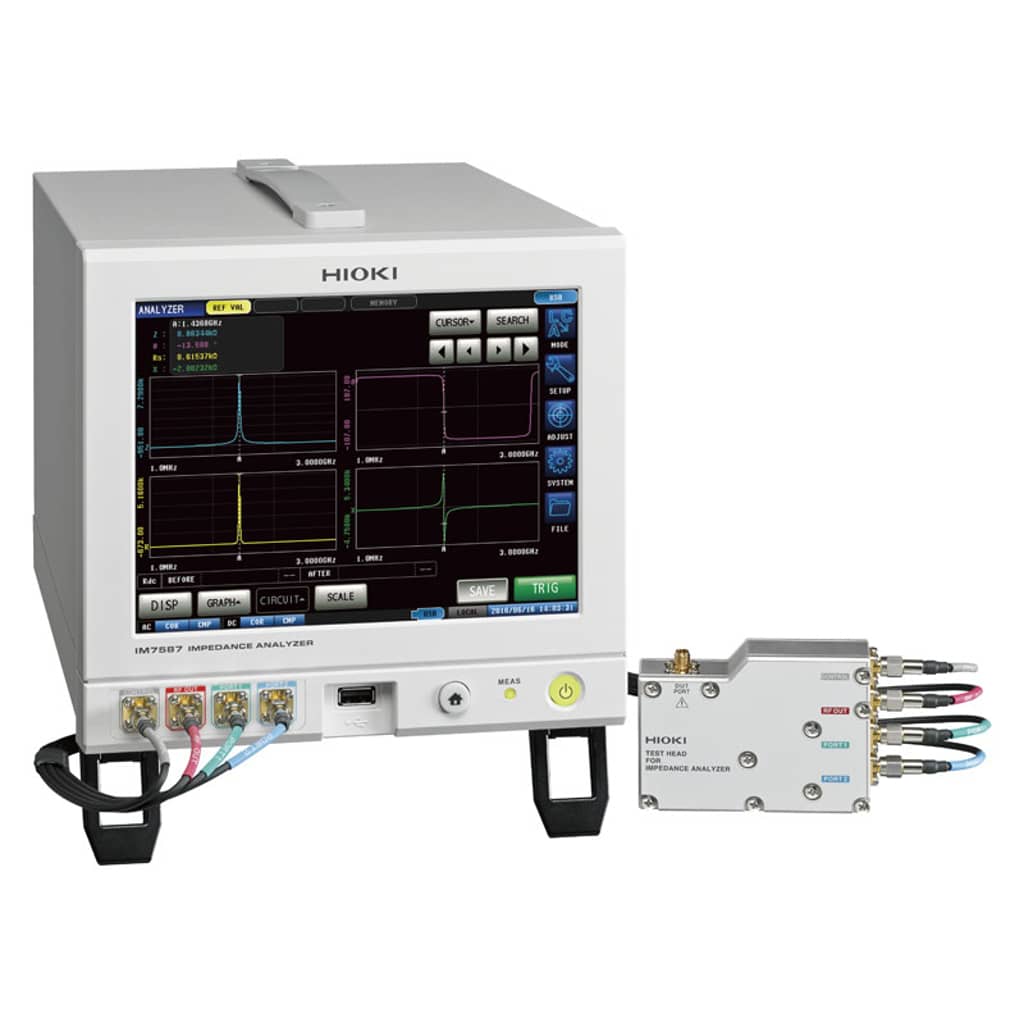

Basic specifications
Accuracy guaranteed: 1 year
| Measurement modes | LCR mode, Analyzer mode (sweeps with measurement frequency and measurement level), Continuous measurement mode | |||||
|---|---|---|---|---|---|---|
| Measurement parameters | Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q | |||||
| Measurable range | 100 mΩ to 5 kΩ | |||||
| Display range | Z: 0.00 m to 9.99999 GΩ / Rs, Rp, X: ± (0.00 m to 9.99999 GΩ) Ls, Lp: ± (0.00000 n to 9.99999 GH) / Q: ± (0.00 to 9999.99) θ: ± (0.000° to 180.000°), Cs, Cp: ± (0.00000 p to 9.99999 GF) D: ± (0.00000 to 9.99999), Y: (0.000 n to 9.99999 GS) G, B: ± (0.000 n to 9.99999 GS), Δ%: ± (0.000 % to 999.999 %) | |||||
| Basic accuracy | Z: ±0.65 % rdg. θ: ±0.38° | |||||
| Measurement frequency | 1 MHz to 3 GHz (100 kHz setting resolution) | |||||
| Measurement signal level | Power: -40.0 dBm to +1.0 dBm Voltage: 4 mV to 502 mVrms Current: 0.09 mA to 10.04 mArms | |||||
| Output impedance | 50 Ω (at 10 MHz) | |||||
| Display | 8.4-inch color TFT with touch screen | |||||
| Measurement speeds | FAST: 0.5 ms (Analog measurement time, typical value) | |||||
| Functions | Contact check, Comparator, BIN measurement (classification), Panel loading/saving, Memory function, Equivalent circuit analysis, Correlation compensation | |||||
| Interfaces | EXT I/O (Handler), USB communication, USB memory, LAN, RS-232C (optional), GP-IB (optional) | |||||
| Power supply | 100 to 240 V AC, 50/60 Hz, 70 VA max. | |||||
| Dimensions and mass | Main unit: 215 mm (8.46 in) W × 200 mm (7.87 in) H × 348 mm (13.70 in) D, 8.0 kg (282.2 oz) Test head: 90 mm (3.54 in) W × 64 mm (2.52 in) H × 24 mm (0.94 in) D, 300 g (10.58 oz) | |||||
| Included accessories | Test head ×1, Connection cable ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1, Power cord ×1 | |||||
Comparator function: Impedance Analyzer IM7580 series
A comparator function lets you check whether measured values fall within a user-defined judgment range. This functionality is ideal for use in generating PASS/FAIL judgments for specimens.
Contact check function: Impedance Analyzer IM7580 series
The instruments’ contact check function lets you check contact between the specimen and measurement terminals to detect faulty contact or verify good contact.
How to connect the test head: Impedance Analyzer IM7580 series
Connect the cable of the test head to the impedance analyzer.
Tighten the nut until the handle of the torque wrench bends slightly.
Do not over tighten.
Application information
Download the sample application and view the Communications Command User Manual.
Accuracy calculation information
Calculate accuracy by simply entering a numerical value.
