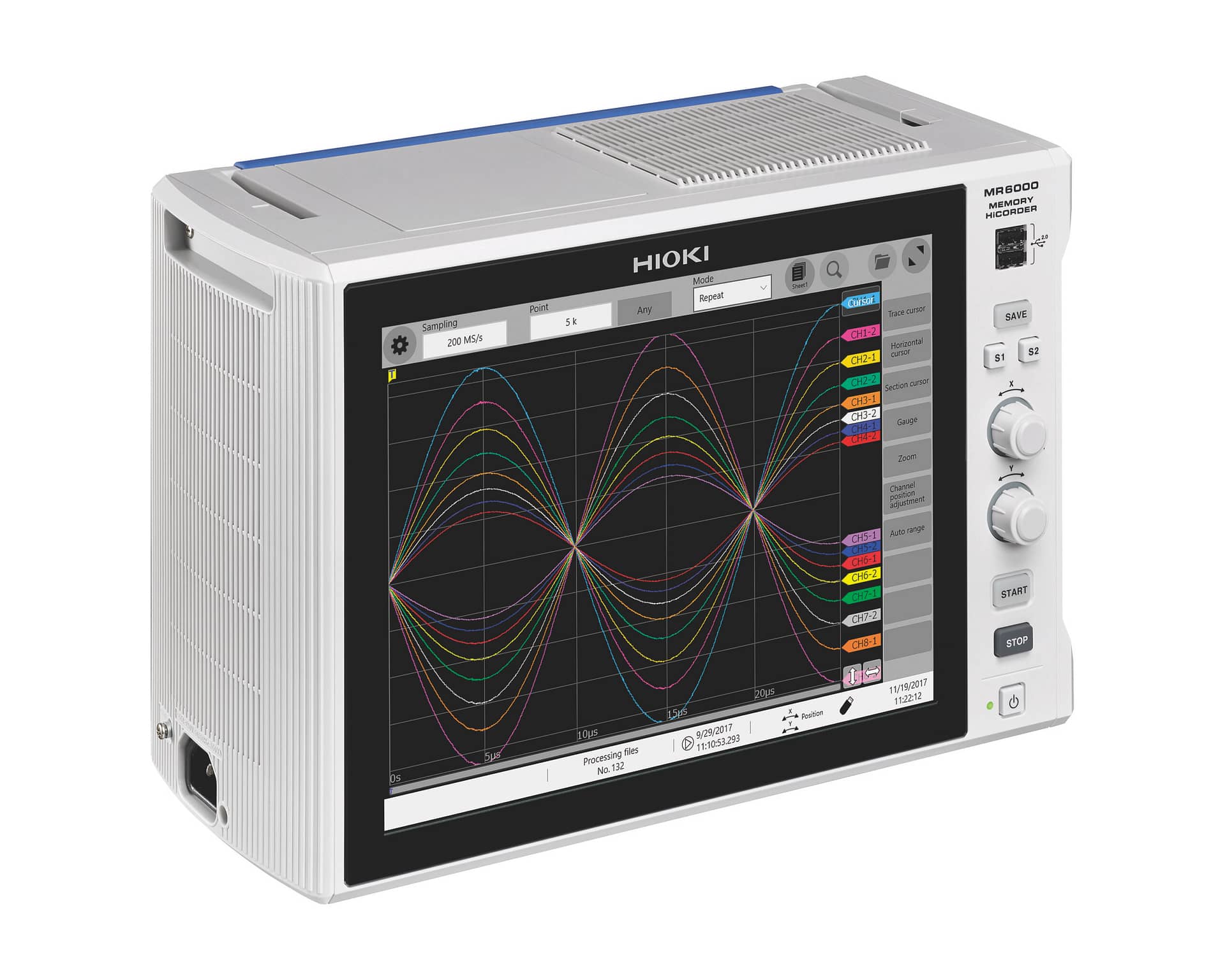

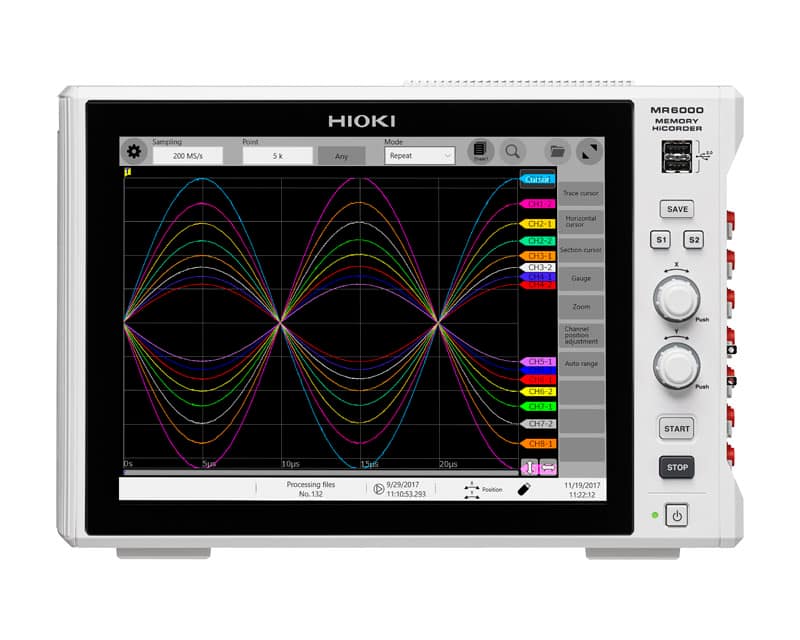

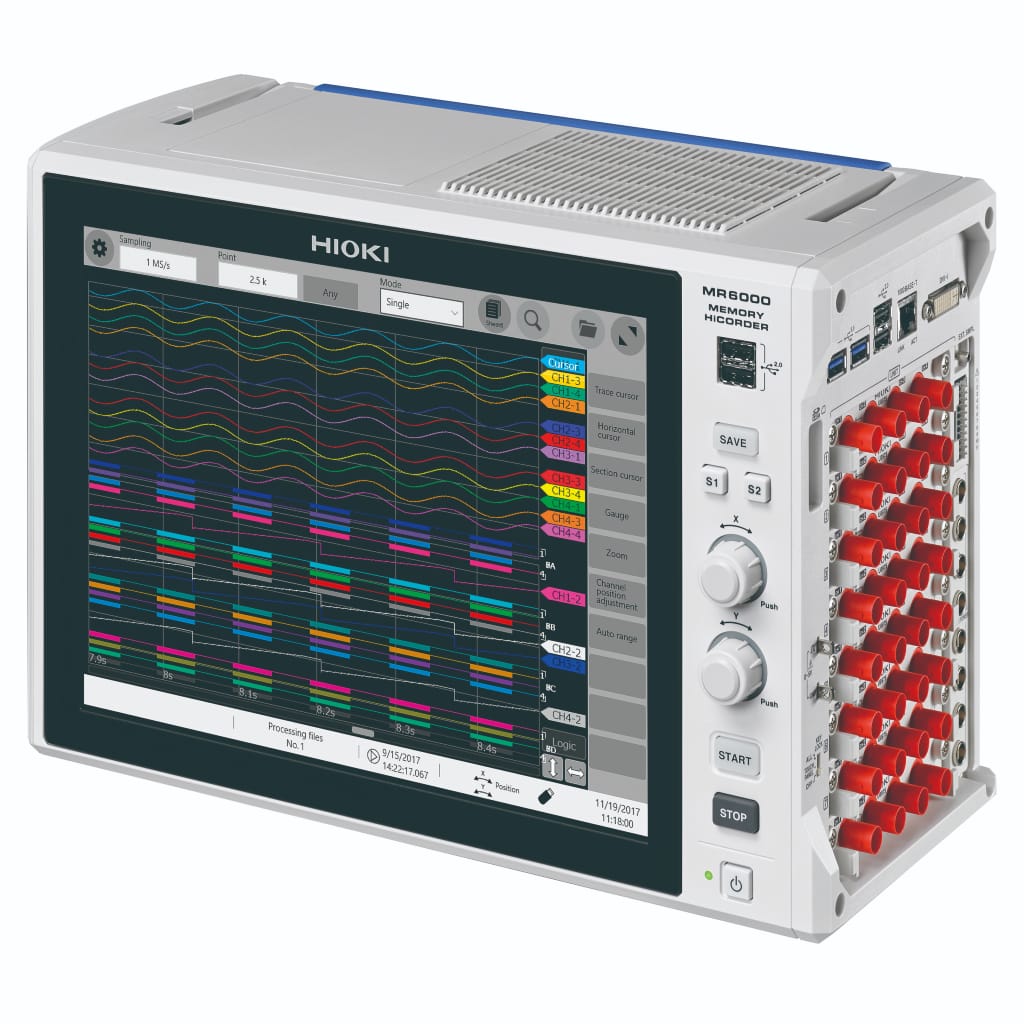

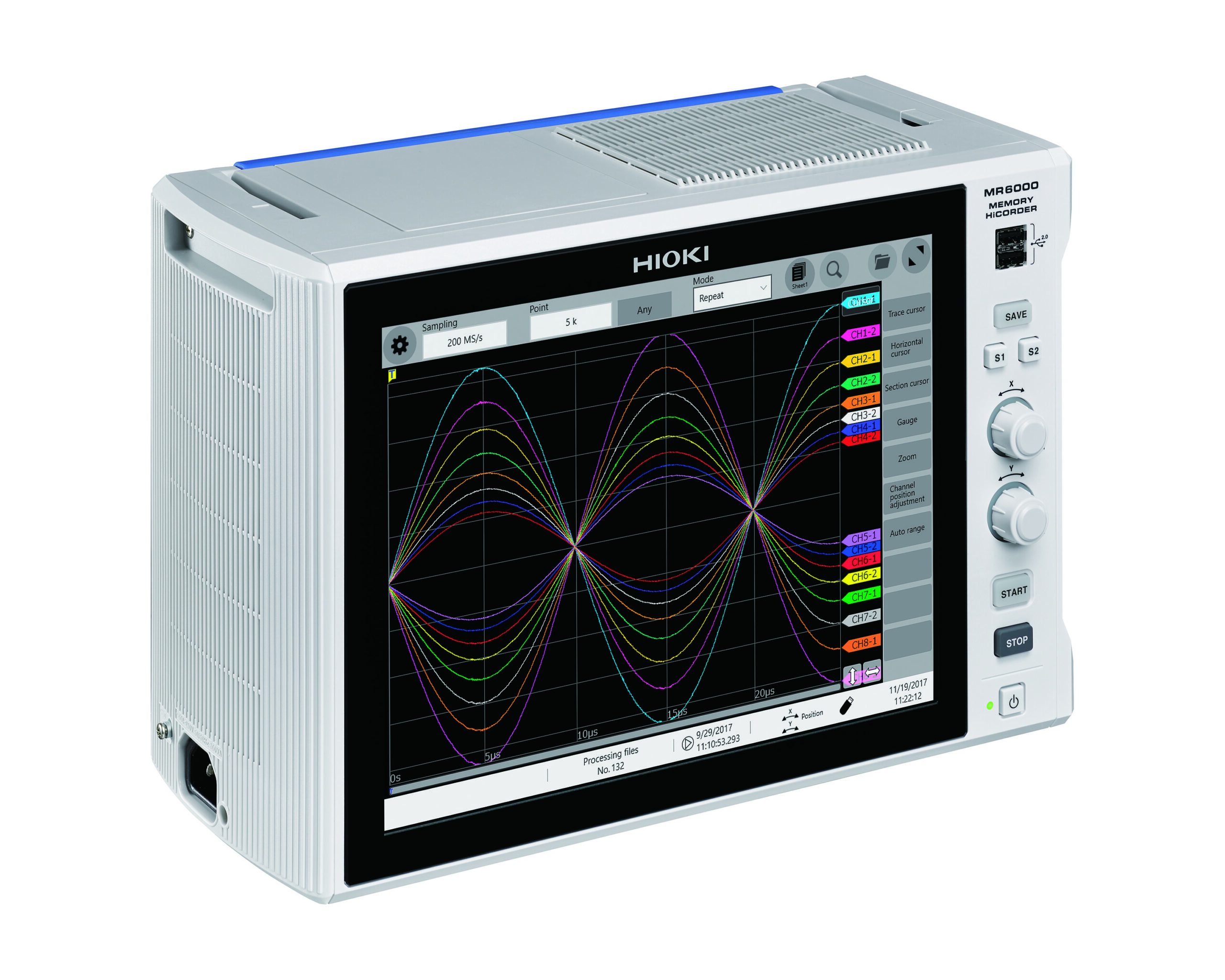

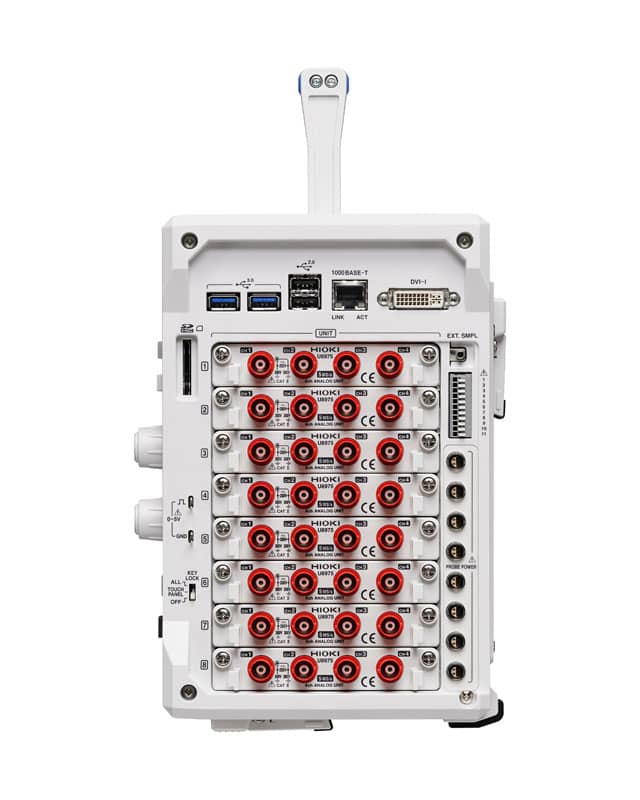

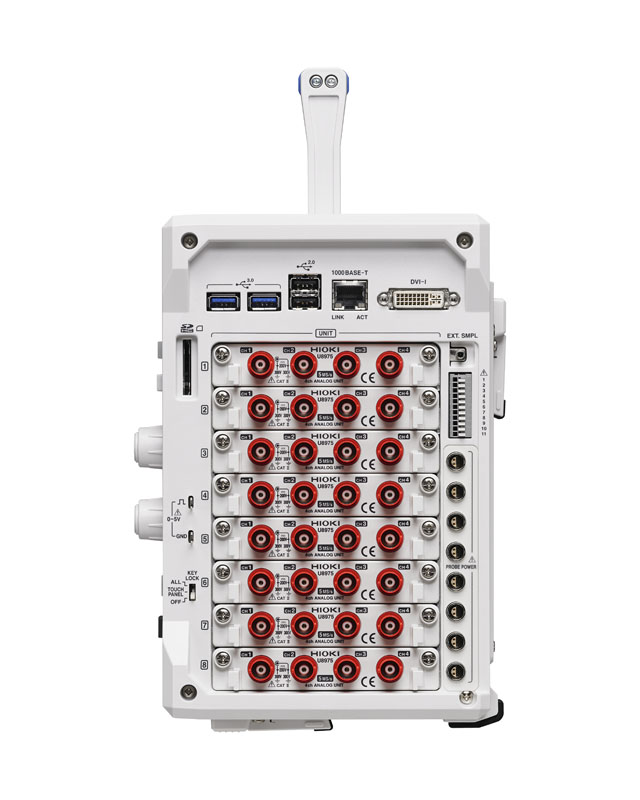

Hioki MR6000 Memory HiCorder

Product description

The Hioki HiCorder MR6000 platform offers you a test en monitoring solution of max 32 channels in one unit, depending on the type of input modules.

Several systems can be synchronised to become a testplatform of up to 128 channels. The large touch screen allows you to visualise and analyse your test parameters, like temperature, voltage, current, acceleration, strain, frequency and logic (16 channels).

Sampling speeds up to 200 MS/s allow you to capture data in fast changing situations.

Key Features

  • Compact, portable, multichannel measurement platform
  • Longest Continuous recording in the entire series
  • Sampling speeds up to 200MS/s
  • 28 isolated measurement channel in one unit
  • Very fast transfer speed and outstanding real-time save function
  • 15 different input modules offer you a wide range of test solutions.

Basic specifications

Accuracy guaranteed: 1 year
Additional functionN/AReal-time waveform calculation, Digital Filter calculation.
Number of input unitsMax. 8 units
Number of channelsMax. 32 analog channels (when using the U8975), or 128 logic channels (when using the 8973)
Measurement ranges (20 div full-scale)10 mV to 400 V f.s., 12 ranges (when using the U8976), Resolution : 1/1600 of range
4 V to 200 V f.s., 6 ranges (when using the U8975), Resolution : 1/32000 of range
Max. allowable input1000 V DC / 700 V AC (when using the U8974), 200 V DC (when using the U8975), 400 V DC (when using the U8976)
Frequency characteristicsDC to 30 MHz (when using the U8976), DC to 2 MHz (when using the U8975)
Max. sampling rate200 MS/s, all channnels simultaneously (when using the U8976)
External sampling: 10 MS/s
Recording methodsNormal: Normal waveform recording
Envelope: Record maximum and minimum values every fixed period
Storage memory capacity1 G-words
Removable storageSD memory card ×1, USB memory ×7, SSD/HDD (built in the main unit) ×1
FTP transmission (to LAN-connected computer) *Use only Storage Media sold by HIOKI.
Display12.1 inch XGA-TFT color LCD (1024 × 768 dots)
External interfacesLAN, USB, SD, SATA, Monitor output
Power supply100 to 240 V AC (50/60 Hz) (300 VA max.)
Dimensions and mass353 mm (13.9 in)W × 235 mm (9.25 in)H × 154.8 mm (6.09 in)D, 6.5 kg (229.3 oz) (main unit only)
Included accessoriesPower cord ×1, Quick start manual ×1, Precautions conserning use ×1, Application disk (CD-R) ×1, Instruction manual (CD-R, detail and calculation) ×1 , Blank panel (for blank slots only)

Hioki MR6000 Memory HiCorder – Change the Way You Measure, Record and Analyze

The MR6000’s 12.1-inch capacitive touch panel facilitates smooth, intuitive operation by allowing you to select settings simply by tapping them and to zoom in on waveforms with standard finger gestures.
Moreover, the Waveform Search function makes it easy to search large volumes of measurement data for the waveforms you wish to view.
The instrument can also automatically search all measured data for anomalous waveforms.

High-speed isolated measurement at 200 MS/s

The High Speed Analog Unit U8976 boasts the highest sampling rate in its entire series, an order of magnitude faster than conventional models, enabling the unit to perform isolated measurement at 200 MS/s.
Thanks to its overwhelmingly fast sampling speeds, the unit can accurately acquire changes in high-speed signals so that you can capture momentary phenomena.

Frequency band and isolated performance that let you accurately capture high switching frequencies

The MR6000 provides isolated channels that can accept 400 V DC direct input while maintaining high-speed sampling at 200 MS/s, allowing it to accurately capture switching waveforms in evaluation testing of inverter and power supply designs that are required to deliver high levels of efficiency. Smooth operation lets you read trace values simply by flicking the flicking the cursor to the side.

Completely isolated input

Connections between analog input channels, and between the input channel and the main unit, are fully isolated. This means that, unlike an oscilloscope, measurements can be made without concern with negative effects from potential differences.

Optical isolation devices (HIGH SPEED ANALOG UNIT U8976)

Save Time Reduced to 1/30th

Transferring very large amounts of data measured over a long period of time used to be very time-consuming.
The MR6000 features a brand new interface and faster internal processing, reducing the time required to save measurement data to media.
For example, a save operation that took 1 minute on the previous model now completes in 2 seconds. This saves you the trouble of waiting for data to be saved and improves work efficiency.

Long-term recording and high-speed sampling in multiple channels

The real-time save function controls the available measurement duration without relying on the capacity of the internal memory.
For long-term recording, we recommend a high-capacity SSD or HD unit. You can also use a more convenient USB memory stick or SD memory card.
All phenomena can be recorded at a high sampling rate over a long period of time.

《Saving data directly to your PC》
Transfer measurement data directly to your PC by using the FTP sending function together with the real-time save function. This makes it easier to observe data after the measuring process.

An Extensive Line of Units for Detecting a Wide Range of Phenomena

Combine multiple units to record a range of phenomena.
Use multiple logic units to measure relay ON/OFF signals or PLC (programmable logic controller) signals across up to 128 channels simultaneously.
You can also measure temperature by attaching a thermocouple to a temperature unit.

《Unit selection guide》

See the “Options” of the MR6000 for more information about units.

High-sensitivity, high-precision, broadband current probes and sensors

《Current probe》
Analyze minuscule current waveforms from low-power consumption devices in 100 μA resolution. Record device current consumption waveforms in high resolution over extended periods of time.
Additionally, the optional Probe Power Unit Z5021 can supply power to current probes from the MR6000.

《Current sensor》
Clamp-type high-accuracy sensors deliver excellent temperature characteristics, allowing highly accurate measurements to be made even in the confined space of a vehicle’s engine compartment.
The 3ch Current Unit U8977 lets you connect current sensors directly, allowing the MR6000 to power them and scale readings automatically.

[Since Ver. 4.01] Power measurement

1. Display of voltage, current, and power trends
When measuring voltage and current after configuring power calculation settings, the instrument automatically performs waveform calculations and displays power values. In addition, it can display calculation results after measurement if you configure the power calculation settings.
2. Cycle-by-cycle calculations
The instrument performs calculation processing for each cycle, defined as the interval from one zero-cross point to the next zero-cross point, based on the waveform chosen as the reference channel.
3. Simple settings screen
A dedicated screen makes it easy to configure settings for power calculations, including wiring method and voltage and current channels.

[Since Ver. 4.01] Rotation angle measurement functionality

1. Measurement of resolver rotation angle
Using the waveform calculation function, the instrument acquires three channels of data (resolver excitation signal, cos θ, and sin θ) and generates a trend display for the motor’s rotation angle.
2. Measurement of rotary encoder rotation angle
Using the waveform calculation function, the instrument acquires the A, B, and Z pulse signals from the rotary encoder and generates a trend display for the motor’s rotation angle.
*Only incremental method is available. Absolute method is not available.

[Since Ver. 3.5] CAN/CAN FD, LIN Measurement

CAN buses and LIN buses carry not only control information, but also sensor information required by the ECU for control purposes. Analog values for sensor input signal quantities such as voltage, strain, temperature, flow rate, RPM, torque, vehicle speed, and vibration can be measured at the same time as these signals.

《Capture all data on the CAN and LIN bus during measurement》
The MR6000 captures all frame data on the CAN or CAN FD bus and LIN bus during the set recording time. After measurement, you can specify the signals you wish to check and display them on the screen.

《Load to waveform viewers compatibled with MDF format》
Analog, logic, CAN, and LIN data measured using the MR6000 are saved in MDF (Measurement Data Format) and can be loaded by any waveform viewer that supports MDF.

《Load DBC and LDF files with the MR6000》
Set the definitions by loading DBC and LDF files on the MR6000. A PC is not required.

《Hioki offers CAN signal acquisition sensors》
• No modification of vehicle cables
Acquire signals simply by pinching the cables with the probe

• No effect on the CAN bus or vehicle ECUs
Non-contact sensing technology

• Accurate, reliable signal capture
Ideal for use in development and evaluation applications

For more information about SP7001 and SP7002, please check here.

Calculate measurement data during measurement (Real-time waveform processing) *MR6000-01 feature

The MR6000-01 further features powerful technology designed for robust real-time waveform processing. This function performs the four arithmetic operations (addition, subtraction, multiplication, and division), differentiation calculations, or integration calculations during the measuring process, letting you use check the calculated results via waveforms while measuring or apply triggers during monitoring. Results can be further processed after measurement and saved.

Triggers that detect targeted events

Set triggers on any channel to record data whenever an event occurs. Triggers can be set for all channels.

Level trigger : Compares to one voltage value.
Window trigger : Compares to two voltage values.
Voltage drop trigger : Detects voltage drops in commercial power lines.
Period trigger : Monitors periods.
Glitch trigger : Detects anomalies in pulses.
Pattern trigger : Compares when the logic signal is ON/OFF.

Observe fluctuations for extended periods of time without reducing the sampling rate (Envelope function)

The system uses the envelope measurement method to record maximum and minimum values at set intervals while performing oversampling at 100 MS/s. The internal memory has a capacity of 1 G-words, which ensures that the measuring process can continue for a long time without any data loss.
Save data in real time while measuring.

Measure anomalies during extended testing with high-speed sampling (Dual sampling function)

In vibration testing, it’s necessary to record comprehensive test data for several hours. At the same time, it’s necessary to capture areas of the waveform where anomalies occur with high-speed sampling for analysis once measurement is complete.
The dual sampling function is useful in such situations.

(1) Record the entire trend waveform
Use the envelope function to record comprehensive test data for several hours.

(2) Check details with the instantaneous waveform
Anomalies occurring during the test will be captured with high-speed sampling based on triggers that have been set up in advance. By tapping on a trigger mark’s number, you can display the instantaneous waveform for the anomaly that occurred at that waveform area.

Display Functions

《Numerical display function》
This function is effective for checking the status before and during measurement.

《Sheet function (display group)》
Switch among 16 sheets to analyze the waveform from various perspectives.

《Scroll function》
You can use the scroll function to check the waveform as if viewing it on paper.

《Zoom function》
The zoom function allows you to display all measurement waveforms on a single screen, in the manner of an oscilloscope, and to view desired locations in greater detail.

Easily search for waveforms in huge volumes of measurement data

The Memory HiCorder Concierge function automatically calculates the characteristics of a reference waveform set by the customer and then searches all measured data while identifying waveforms that do not resemble the reference waveform as anomalous waveforms. This drastically reduces the amount of time required to search for anomalies by eliminating the need to scroll through measured waveforms and checking them visually.
Additionally, this function is ideal for situations where it is difficult to set the right triggers before measuring because the nature of potential anomalies cannot be predicted.

Achieving the dual role of generation and recording with a single unit

The arbitrary waveform generation function and waveform measurement function are realized by one Memory HiCoder.

Numerical calculation function

By performing numerical calculations on measured waveforms, you can perform analyses using numerical parameters. Not only analog channels and logic channels, but also results of the real-time waveform calculation function can be used in this calculations.

《Calculating switching times measured using logic channels (t1, t2, t3, T) 》
You can calculate time differences by applying numerical calculations to signals measured using logic channels.

《Calculating the time that elapses until a reading falls from the maximum value to a defined level (50 V) after a capacitor is charged during capacitor charge/discharge testing》
You can calculate the desired value by calculating the time at which the maximum value occurs and the time at which the specified level occurs using numerical calculations and then performing your desired arithmetic operations.

《Calculating the motor inrush starting current time (t1) 》
You can derive the desired time by calculating the burst width using numerical calculations.


《Power Fluctuation Measurement》
Please check the MR6000 catalog.

《Motor Torque and Vibration Measurement》
Please check the MR6000 catalog.

《Measurement of Dynamic Motor Characteristics》
Please check the MR6000 catalog.

《Calculate a Resolver’s Angle of Rotation》

PC Software 《MR6000 Viewer》

Load data measured with the MR6000/MR6000-01 onto a PC to display waveforms and perform calculations. Utilize functionality similar to that provided by the MR6000 on a PC, including numerical calculations, waveform processing, and FFT calculations. (Some restrictions apply.)

Supported models: MR6000, MR8847A, MR8827, MR8740, MR8741

PC Software 《GENNECT One》

GENNECT One lets you display and save data in real time on a PC during measurement. It also serves as a useful tool in measurement applications that include other instruments.

《Simultaneous, real-time observation》
GENNECT One lets you display data from multiple instruments together and in real time in list or graph form.

《LAN remote control function》
Change instrument settings and control operation, for example to start or stop measurement.

Commercially available software

· High-speed search and processing of large volumes of data
· Share analysis templates inside your company

《NI DIAdem》
· Functionality ranging from searching and loading of data to analyzing and creating of reports
· Dialog-based interface

· Freely edit large data that cannot be handled by Excel
· Simultaneously display the waveforms which have different frequencies

· More than 400 calculation processing variables
· Easy report creation functionality

Design accolades

《2018 iF Design Award》
The MR6000 received an iF Design Award from Industrie Forum Design Hannover, an international organization that promotes design.

《2018 Japan Manual Contest》
The MR6000 and MR6000-01 Memory HiCorder’s Quick Start Manual received an Excellence Award in the industry category of the Japan Manual Contest.

《2018 Good Design Award》
One judge observed, “The MR6000’s design has been tweaked so that the product, which was originally designed for use in maintenance settings, can also be used in the development of inverter and power conditioner technologies to improve the energy efficiency of these continually evolving devices. Refined to detect the effects of minuscule changes, the product is praiseworthy for balancing research-oriented functionality and user friendliness while significantly boosting measurement precision. Its features include isolated channels, a readily portable design, accommodation of extended measurement time as evident in design touches like the ergonomic angle of its monitor and use of a touch panel, and an interface that allows users to view multiple phenomena at once. Through all of these, one can see the designer’s thoughtfulness towards both the maintenance and R&D engineer.
