R14,492.50 R6,900.00 excl VAT

Tektronix MDO3AFG Arbitrary Function Generator

***Stock clearance, price valid while stock lasts***


Add an arbitrary function generator with 13 predefined waveforms and arbitrary waveform generation to any Tektronix MDO3000 Series product. One-time, permanent upgrade to any model enabled through single-use application module hardware key.

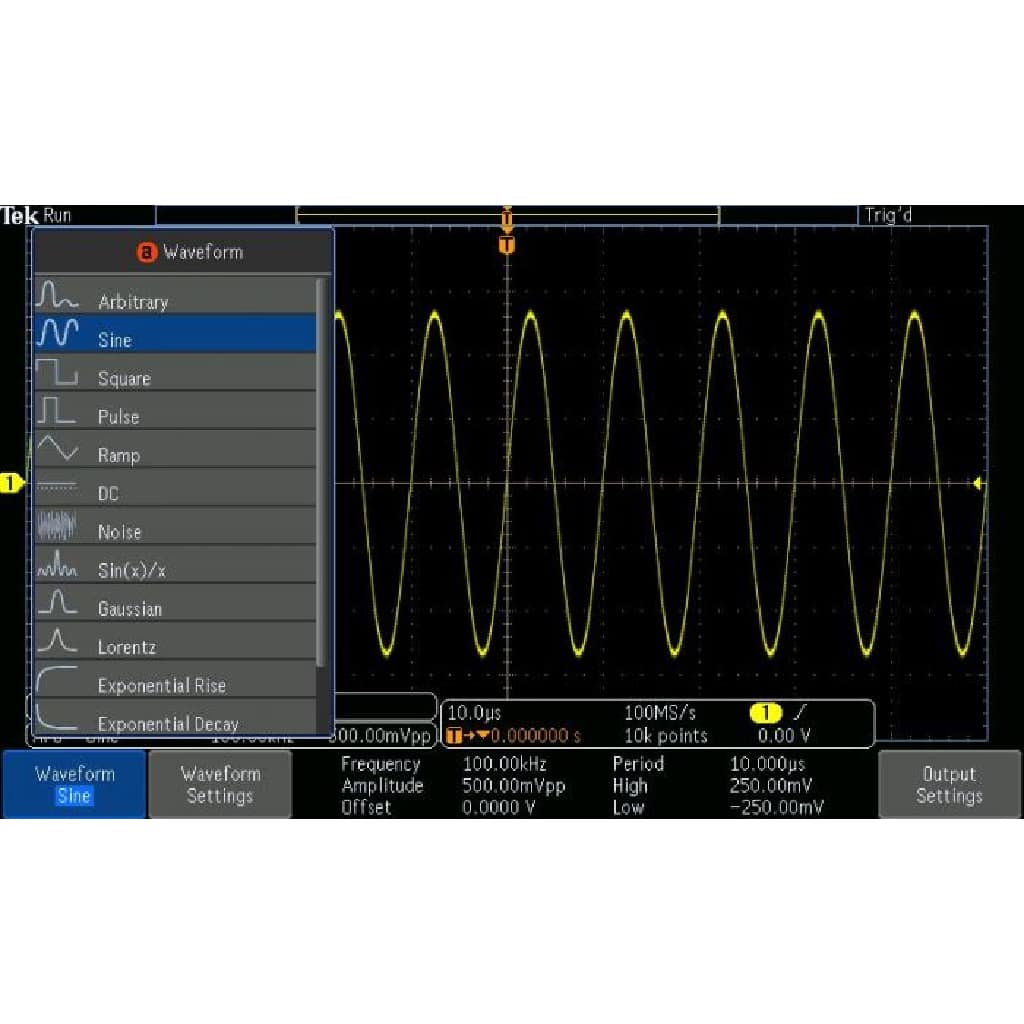

The Tektronix MDO3000 series contains an optional integrated arbitrary function generator (option MDO3AFG), perfect for simulating sensor signals within a design or adding noise to signals to perform margin testing. The integrated function generator provides output of predefined waveforms up to 50 MHz for sine, square, pulse, ramp/triangle, DC, noise, sin(x)/x (Sinc), Gaussian, Lorentz, exponential rise/fall, Haversine and cardiac. The arbitrary waveform generator provides 128 k points of record for storing waveforms from the analog input, a saved internal file location, a USB mass storage device, or from an external PC. Once a waveform is in the edit memory of the arbitrary waveform generator, it can be modified via an on-screen editor and then replicated out of the generator. The Tektronix MDO3000 is compatible with Tektronix’ ArbExpress PC-based waveform creation and editing software, making creation of complex waveforms fast and easy. Transfer waveform files to your Tektronix MDO3000 edit memory via USB or LAN or using a USB mass storage device to be output from the AFG in the oscilloscope.
