Keithley Series 2281S Battery Simulator and Precision DC Power Supply

Request more information
  • Power Supply, 0 to 20V, 0 to 6A, 120W
  • Simulate a battery’s output during the charge and discharge cycles
  • Create, edit, import, and export battery models
  • Build a library of battery models using a Source Measure instrument as a model generator
  • Display the real-time change of the SOC, Voc, and Vt for the simulated battery
  • Compute battery capacity in Amp-Hour and Equivalent Series Resistance (ESR)
  • Program the battery SOC, Voc, capacity, and internal resistance (ESR)
  • Provide two modes of simulation–dynamic and static
  • Monitor charge/discharge current and voltage
  • Output up to 120 W of low noise, linear regulated power
  • Monitor load currents from 100 nA to 6 A with high accuracy in power supply mode
  • Measure voltage and current with 6½-digit resolution
  • Sink current up to 1 A and source current up to 6 A
  • Built-in graphing simplifies analyzing trends or displaying voltage or current waveforms
  • High resolution TFT display and soft-key/icon-based user interface simplify operation
  • Digital I/O for direct communication with other devices and instruments
  • GPIB, USB, and LAN interfaces
  • Emulation of front panel display and controls via your web browser simplifies automated control and monitoring

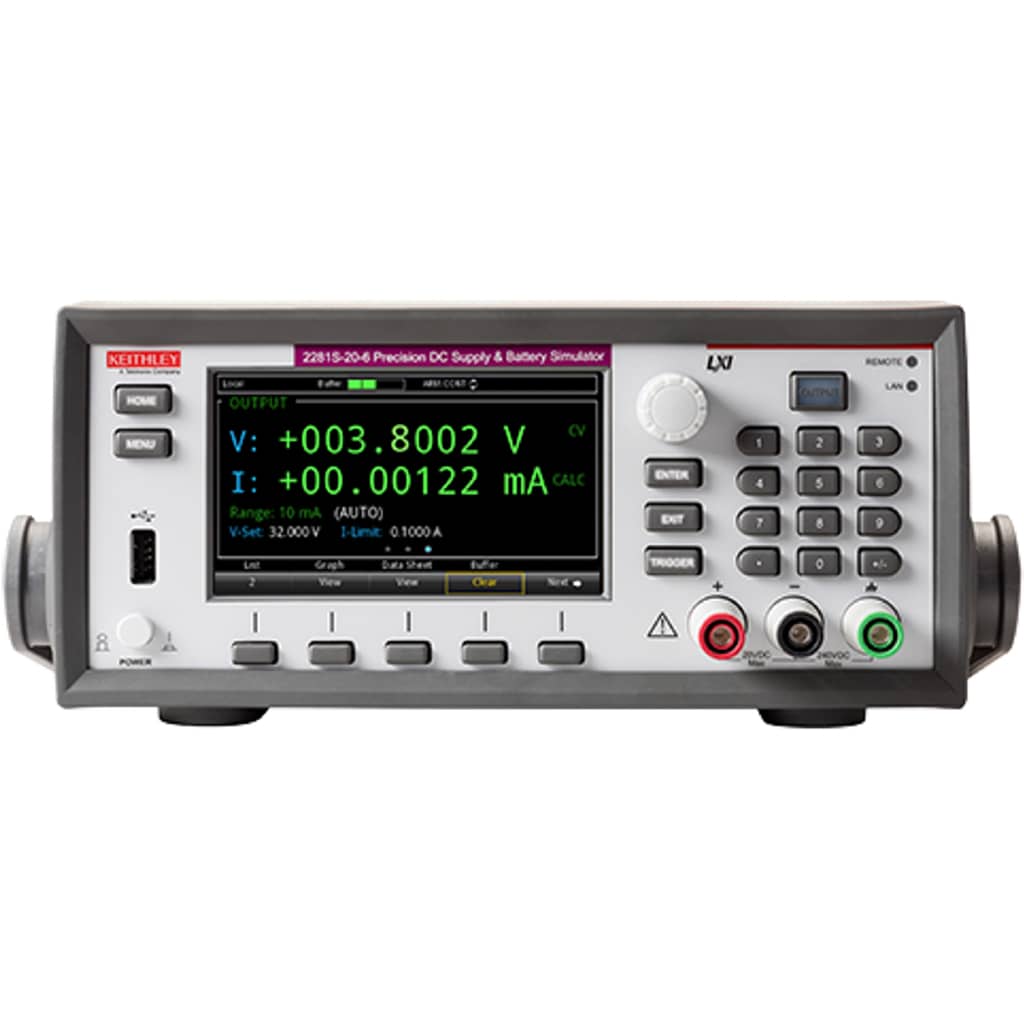

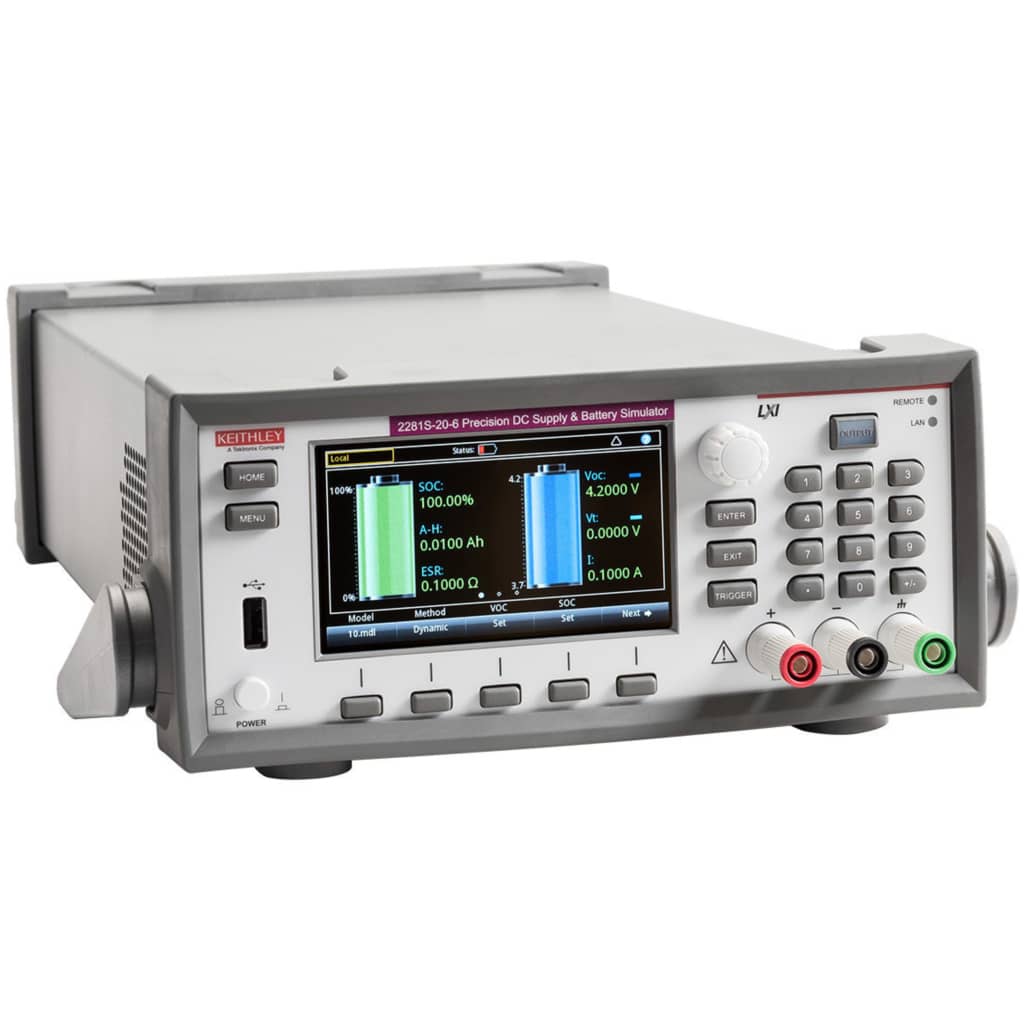

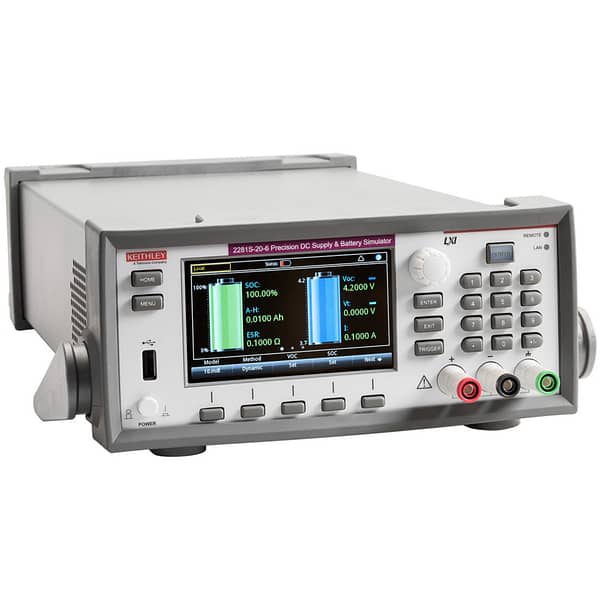

The Series 2281S Battery Simulator and Precision DC Power Supply innovatively integrates battery simulation with the functions of a high-precision power supply. The 2281S-20-6 can analyze the DC current consumption of a device under test and generate a battery model based on a battery charging process, and simulate a battery based on a battery model. The 2281S-20-6 can output 120 W with 20 V and 6 A, and sink current up to 1 A.

The 2281S uses linear regulation to ensure low-output noise and superior load current measurement sensitivity. A high resolution color thin film transistor (TFT) screen displays a wide range of information on measurements. Soft-key buttons and a navigation wheel combine with the TFT display to provide an easy-to-navigate user interface that accelerates instrument setup and operation. In addition, built-in plotting functions allow monitoring trends such as drift. These features provide the flexibility required for both benchtop and automated test system applications. In addition, the 2281S provides a list mode, triggers, and other speed optimization functions to minimize test time in automated testing applications.
