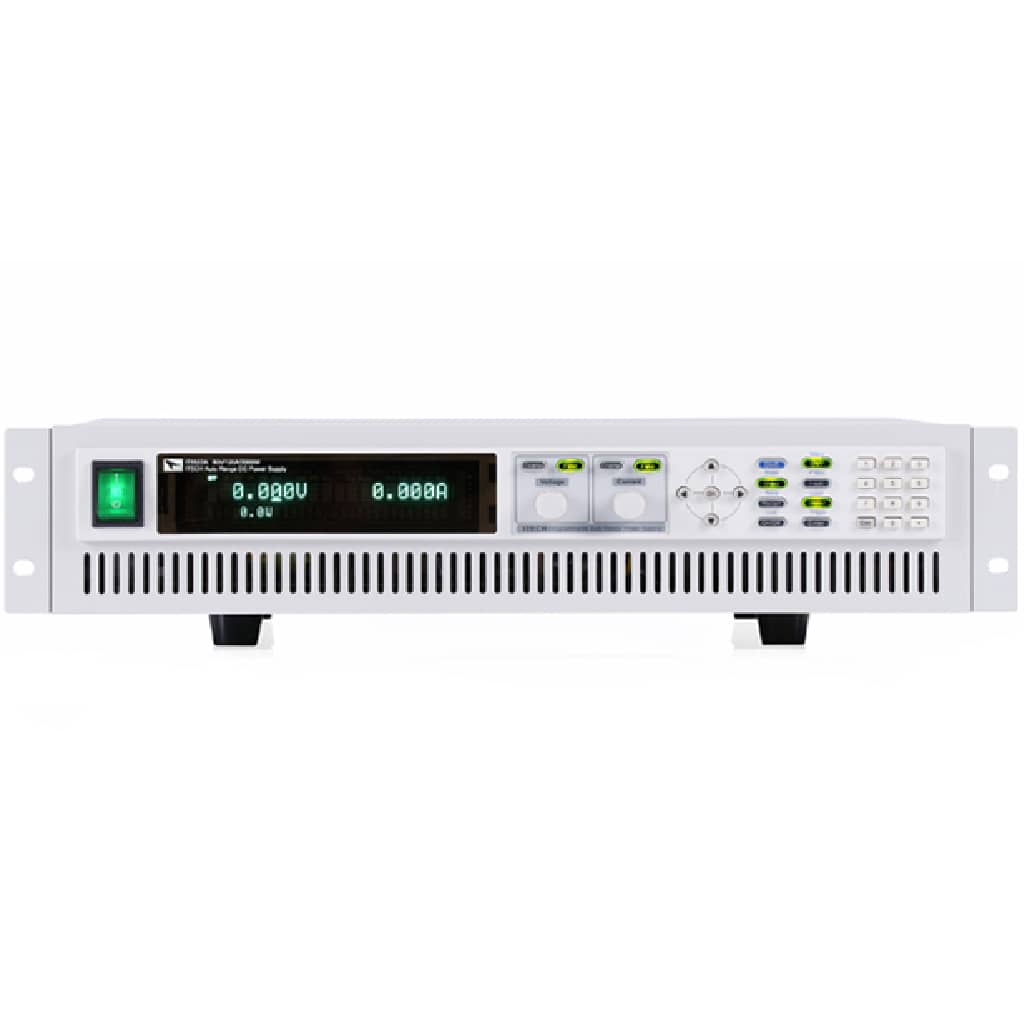

ITECH IT6500 Series Wide-range High-power DC Power Supply

  • Support multiple power supplies paralleling in Master-Slave mode and ensures each power supply equally shares the load current. Extension capacity is up to 30kW output.
  • Support up & down speed independently setting in different operation modes (Power supply: CV/CC/CP modes, Electronic load: CC/CP modes).
  • Adjustable rising and falling time
  • Two-quadrant current output, fast switching between quadrants – seamless switching, suitable for battery rapid charging/discharging test *1 *3*5
  • Combined with IT-E501 power dissipater unit, can meet discharge test demand up to 90kW *1
  • Built-in DIN 40839, ISO-16750-2, SAEJ1113-11, LV124 and ISO2184 standard voltage curve for automobile power net *2
  • Solar panel I-V curve simulation function *4
  • LIST mode programming
  • Variable output impendence function *1
  • Low ripple and low noise
  • High resolution and high accuracy
  • Support multiple protections (Power Supply: OVP,OCP,OPP; Electronic Load: OCP,OPP,OTP, Vsense Reverse protection, turn-off protection, input under voltage protection
  • Remote sense function
  • Analog control interfaces
  • Built-in USB/RS232/CAN/LAN interfaces

*1 Limit IT6500C series have this function
*2  Limit IT6500C series have this function, IT6512 and IT6513 are built-in DIN 40839, ISO-16750-2
*3 To achieve perfect battery charge & discharge function, please purchase IT9320 charge & discharge test system software
*4 Optional SAS1000 software
*5 Fast switching can be achieved under certain conditions, seamless switching function is unable to realize

With ITECH’s latest technology, the IT6500 series offers a full-featured high-performance power test solution. With fast response these DC power supplies provide users with a new level of power supply performance. From 800W to 30 kW, the whole series include more than 100 models. The maximum output voltage and current is up to 1000V and 1200A respectively. With its auto-ranging capability, it also has a super wide range of voltage and current applications. Users can choose the power supply that fits their testing requirements perfectly. In combination with the IT-E501 power dissipater unit, the current sinking capacity of IT6500C can be 100%, 200%, 300% and the power sinking up to 300% of the Sourcing capability. As a high-speed two-quadrant power supply, IT6500C (1800W-30kW) series has a priority function so as to realize high-speed current transition between power supply mode and electronic load mode, to achieve fast switching between sourcing and sinking current, even can achieve seamless switching under certain conditions. IT6512, IT6513 and IT6500C series power supplies provide built-in DIN40839 and ISO-16750-2 testing curves, support solar panel I-V curve simulation function.

Functions and Advantages

Seamless current switching between two quadrants
IT6500 series two-quadrant power supply is not simply a combination of a power supply and electronic load, but it is a continuous source and load. For traditional two-quadrant power supply, there will be a short jump and discontinuity across positive and negative currents. As a high-speed two-quadrant power supply, IT6500C (1800W-30KW) series has Loop-Mode function so as to realize high-speed current transition between power supply mode and electronic load mode, to achieve fast switching between sourcing and sinking current, even can achieve seamless switching under certain conditions, thus avoiding overshoot of voltage or current. That enables it to  be widely used in energy storage device testing, such as batteries, battery encapsulation and battery protection panel etc.


With the power dissipater unit, loading capability is expanded
IT6500C series can be used as both a power supply and an electronic load. It greatly enlarges the current sinking range of the power supplies. It enables sinking of current and power, thus it can be applied to applications requiring fast current sink test and batteries charging/discharging test. Each IT-E500 series power dissipater unit provides up to 3kW power sinking capability for the IT6500C series power supply. To meet higher power discharging test demand, multiple power dissipater units’ can be paralleled. The IT-E500 series power dissipater unit can extend the current sinking capability to 100%, 200%, 300% of the source range and the power sinking capability up to 300% of the Power sourcing capability. (Max. Power sink is 90kW). Meeting demanding requirements of high power discharging test.


Fast curve changing without overshoot CC & CV Priority Function
To conquer the demanding testing requirements existing for a long time in various applications, ITECH developed an innovative industry-leading CV & CC priority concept. The IT6500 is available for high-speed test applications with-out overshoot. Users can choose the desired output mode. Voltage high-speed mode or current no overshoot mode by choosing the loop response speed and loop operation mode. It is suitable for high-power integrated circuit test, charging / discharging test, solar array simulation and the transient simulation / characteristic of automotive electronics.


Download Datasheet

Ordering Info

IT6502D80V60A800W1mV/1mA≤0.02%+30mV/ ≤0.1%+0.1%FSRS232/USB/RS4851U
IT6512A80V60A1200W1mV/1mA≤0.02%+30mV/ ≤0.1%+0.1%FSRS232/USB/RS4851U
IT651280V60A1200W1mV/1mA≤0.02%+30mV/ ≤0.1%+0.1%FSRS232/USB/RS4851U
IT6513A150V30A1200W3mV/1mA≤0.05%+30mV ≤0.2%+0.1%FSRS232/USB/RS4851U
IT6513150V30A1200W3mV/1mA≤0.05%+30mV ≤0.2%+0.1%FSRS232/USB/RS4851U
IT6512D80V120A1800W10mV/10mA≤0.05%+30mV ≤0.2%+120mAUSB/RS232/CAN/LAN2U
IT6512C80V120A1800W10mV/10mA≤0.05%+30mV ≤0.2%+120mAUSB/RS232/CAN/LAN2U
IT6513D200V60A1800W10mV/10mA≤0.05%+100mV ≤0.2%+60mAUSB/RS232/CAN/LAN2U
IT6513C200V60A1800W10mV/10mA≤0.05%+100mV ≤0.2%+60mAUSB/RS232/CAN/LAN2U
IT6514D360V30A1800W10mV/10mA≤0.05%+135mV ≤0.2%+30mAUSB/RS232/CAN/LAN2U
IT6514C360V30A1800W10mV/10mA≤0.05%+135mV ≤0.2%+30mAUSB/RS232/CAN/LAN2U
IT6515D500V20A1800W100mV/10mA≤0.05%+200mV ≤0.2%+20mAUSB/RS232/CAN/LAN2U
IT6515C500V20A1800W100mV/10mA≤0.05%+200mV ≤0.2%+20mAUSB/RS232/CAN/LAN2U
IT6516D750V15A1800W100mV/10mA≤0.05%+300mV ≤0.2%+15mAUSB/RS232/CAN/LAN2U
IT6516C750V15A1800W100mV/10mA≤0.05%+300mV ≤0.2%+15mAUSB/RS232/CAN/LAN2U
IT6517D1000V10A1800W100mV/1mA≤0.05%+375mV ≤0.2%+10mAUSB/RS232/CAN/LAN2U
IT6517C1000V10A1800W100mV/1mA≤0.05%+375mV ≤0.2%+10mAUSB/RS232/CAN/LAN2U
IT6522D80V120A3kW10mV/10mA≤0.05%+30mV ≤0.2%+120mAUSB/RS232/CAN/LAN2U
IT6522C80V120A3kW10mV/10mA≤0.05%+30mV ≤0.2%+120mAUSB/RS232/CAN/LAN2U
IT6523D200V60A3kW10mV/10mA≤0.05%+100mV ≤0.2%+60mAUSB/RS232/CAN/LAN2U
IT6523C200V60A3kW10mV/10mA≤0.05%+100mV ≤0.2%+60mAUSB/RS232/CAN/LAN2U
IT6524D360V30A3kW10mV/10mA≤0.05%+135mV ≤0.2%+30mAUSB/RS232/CAN/LAN2U
IT6524C360V30A3kW10mV/10mA≤0.05%+135mV ≤0.2%+30mAUSB/RS232/CAN/LAN2U
IT6525D500V20A3kW100mV/10mA≤0.05%+200mV ≤0.2%+20mAUSB/RS232/CAN/LAN2U
IT6525C500V20A3kW100mV/10mA≤0.05%+200mV ≤0.2%+20mAUSB/RS232/CAN/LAN2U
IT6526C750V15A3kW100mV/10mA≤0.05%+300mV ≤0.2%+15mAUSB/RS232/CAN/LAN2U
IT6527C1000V10A3kW100mV/1mA≤0.05%+375mV ≤0.2%+10mAUSB/RS232/CAN/LAN2U
IT6526D750V15A3kW100mV/10mA≤0.05%+300mV ≤0.2%+15mAUSB/RS232/CAN/LAN2U
IT6532D80V240A6kW10mV/10mA≤0.05%+30mV ≤0.2%+240mAUSB/RS232/CAN/LAN4U
IT6532C80V240A6kW10mV/10mA≤0.05%+30mV ≤0.2%+240mAUSB/RS232/CAN/LAN4U
IT6527D1000V10A3kW100mV/1mA≤0.05%+375mV ≤0.2%+10mAUSB/RS232/CAN/LAN2U
IT6533D200V120A6kW10mV/10mA≤0.05%+100mV ≤0.2%+120mAUSB/RS232/CAN/LAN4U
IT6533C200V120A6kW10mV/10mA≤0.05%+100mV ≤0.2%+120mAUSB/RS232/CAN/LAN4U
IT6534D360V60A6kW10mV/10mA≤0.05%+135mV ≤0.2%+60mAUSB/RS232/CAN/LAN4U
IT6534C360V60A6kW10mV/10mA≤0.05%+135mV ≤0.2%+60mAUSB/RS232/CAN/LAN4U
IT6535C500V40A6kW100mV/10mA≤0.05%+200mV ≤0.2%+40mAUSB/RS232/CAN/LAN4U
IT6536C750V30A6kW100mV/10mA≤0.05%+300mV ≤0.2%+30mAUSB/RS232/CAN/LAN4U
IT6535D500V40A6kW100mV/10mA≤0.05%+200mV ≤0.2%+40mAUSB/RS232/CAN/LAN4U
IT6537C1000V20A6kW100mV/1mA≤0.05%+375mV ≤0.2%+20mAUSB/RS232/CAN/LAN4U
IT6536D750V30A6kW100mV/10mA≤0.05%+300mV ≤0.2%+30mAUSB/RS232/CAN/LAN4U
IT6537D1000V20A6kW100mV/1mA≤0.05%+375mV ≤0.2%+20mAUSB/RS232/CAN/LAN4U
