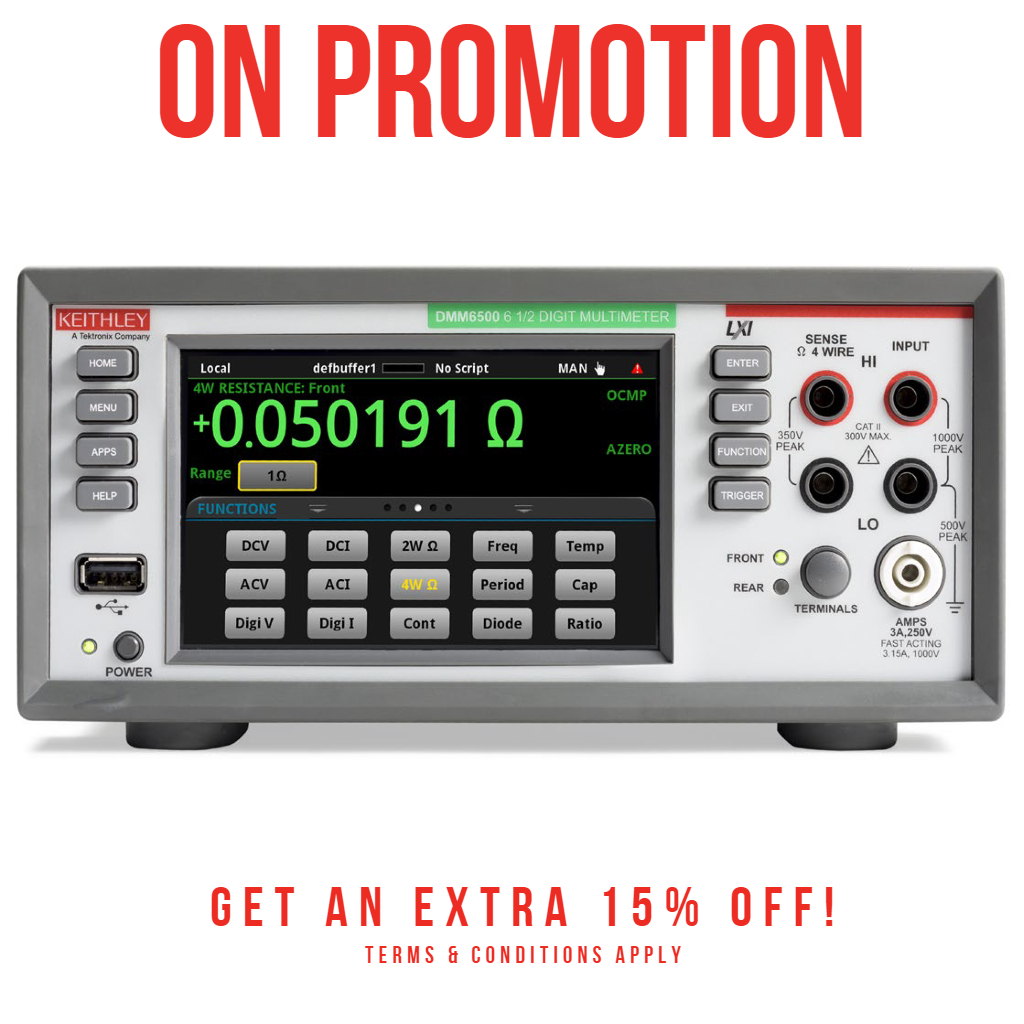

Keithley DMM6500 6½-Digit Graphical Digital Multimeter

***On Promotion until end of July 2021***

• 15 measurement functions including capacitance, temperature, and digitizing
• Expanded measurement ranges include 10 pA to 10 A and 1 mΩ to 100 MΩ
• Large 5-inch (12.7 cm) multi-touch capacitive touchscreen with graphical display
• Large internal memory; store up to 7 million readings
• Multiple language modes: SCPI, TSP® scripting, Keithley 2000 SCPI emulation, Keysight 34401A SCPI emulation
• Two-year specifications allow for longer calibration cycles
• Standard USB-TMC and LXI/Ethernet communication interfaces
• Optional user-installable communication interfaces including: GPIB, TSP-Link®, and RS-232
• Capture voltage or current transients with 1 MS/sec digitizer
• USB host port for storing readings, instrument configurations, and screen images
• Three-year warranty

All-in-one solution with 15 built-in measurements

Get 15 built-in measurement functions, including digitizing, capacitance, and temperature. Make low current and low resistance measurements on low-power devices. Capture transient signals with the built-in digitizer. See two measurements simultaneously to maximize test data. The DMM6500 eliminates the need for additional instruments.

Visualize data and identify measurement trends with the ease of a touchscreen

Get instant measurement insight, such as capturing transient signals and seeing data trends and statistics right on the touchscreen, so you can analyze your data faster and eliminate making additional measurements.

Highlights

  • Display plots of waveforms including overlays of one waveform over another.
  • Pinch and zoom features allow studying transients and signal waveshapes.
  • User cursors and computer statistics to characterize waveforms.

Stream and log data to secure cloud-based data visualizations

Now you can stream data from your DMM6500 and create real-time IoT dashboards and anywhere-accessible data visualizations

Highlights

  • Monitor and log data streams directly from the DMM6500 in real-time and from anywhere – with no PC-in-the-middle required.
  • Get e-Mail and text alerts using triggers based on measurement thresholds and other mathematical rules.
  • Access, visualize, archive, share, transform, and analyze current and historical data from anywhere – no install required.
  • Create dashboards for standardization, repeatability, and readability.
  • Overlay, time-dilate, and compare data sets across test runs.

Keithley Datalogger Dashboard

Expand to ten measurement channels

If you need to look at more devices simultaneously or make multi-point measurements on a device, you can select an optional scan card that gives you up to 10 measurement channels without needing to buy more instruments.

Greater production test throughput and lower cost of test

Highlights

  • Make measurements as short as 0.0005 power line cycles or 8.3 µs (10 µs) for 60 Hz (50 Hz) power lines.
  • Use on-instrument, intelligent, command and control processing to reduce PC communication for reduced test time.

Get an extensive set of interface options

Standard LAN LXI and USB plus optional GPIB, RS-232, and TSP-Link® interfaces

Product ThumbnailProduct ThumbnailProduct ThumbnailProduct Thumbnail

No need to write new code while upgrading

Get code emulation for popular Keithley and competitive DMMs allowing you quick and easy code conversion and faster upgrade.
