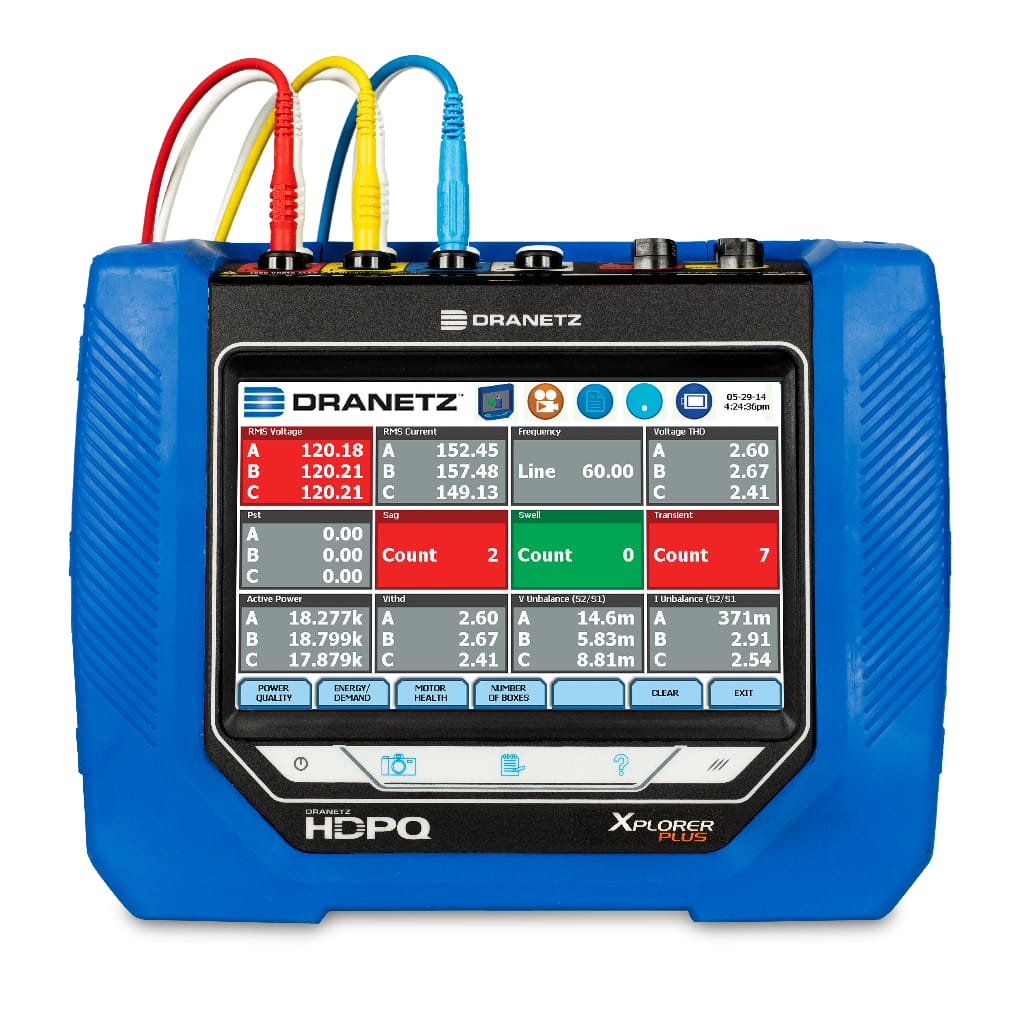

Dranetz HDPQ Xplorer Plus Power Quality Analyser

Request more information

Dranetz HDPQ Xplorer Plus – Precision

• High Definition PQ & Energy Monitoring – 1000Vrms, AC/DC, 512 samples/cycle
• Eight channels, 4 voltage & 4 current
• AnswerModules – Sag directivity, PF capacitor identification, motor – automatic event categorization
• Advanced PQ – IEC 61000-4-30 Class A Ed 3 & IEEE 1159 compliant
• Transient capabilities – V & I waveshape triggers. Well beyond standards requirements
• 10,000 cycle pre/post trigger buffer
• EN 50160 Ed 3
• IEEE 1459 Advanced Power Measurements
• Harmonics – IEC 61000-4-7, IEEE 519 (2014)

Dranetz HDPQ Xplorer Plus – Communications

• Ethernet, Wi-Fi, USB, Bluetooth (optional)
• VNC for full remote control from Dran-View 7 or a 3rd party App
• Apple & Android apps with real time metering and alarm Dashboard

  • Detects & records sags/dips, swells, interruptions, transients, harmonics, flicker, RVC and more – Meets & Exceeds Industry Standards
  • IEC 61000-4-30 Class A Edition 3 PQ compliant (certificate) – Reliable Measurements from a Reputable Manufacturer
  • Power Quality, demand & energy analysis – Complete Power Monitoring Surveys
  • Measures, records and triggers on power parameters such as V, I, W, VA, VAR, PF, demand, energy & more
  • 7″ color, touch LCD display
  • Colored Cables & Connector Panel – Safety, Convenience & Ease Of Use
  • AnswerModules® Included
  • Dran-View 7 Software – Powerful Data Analysis, Reporting & Remote Control
  • Ethernet & Wireless Communications for Remote Control & Data Downloading – Be Safe & Productive
  • Tests 50/60Hz and 16/25Hz
  • Also available in an IP65 enclosure with phase power – See the Dranetz HDPQ Xplorer SP
  • 3 year factory warranty
  • Made in the USA in our ISO 9001:2015 certified factory

The Dranetz HDPQ Xplorer Plus (Portable) power quality analyzer offers the best combination of value & technology from Dranetz, or any other PQ analyzer available! It includes all of the features of the Dranetz HDPQ Visa Plus, but adds Wi-Fi communications, AnswerModules®, 1us transient capture and a 10,000 cycle recording buffer for fault and inrush recording!

The Dranetz HDPQ Xplorer Plus provides you the best in class power quality monitoring capabilities available. It measures to all current industry standards, including IEC 61000-4-30 Class A Edition 3, IEC 61000-4-7, IEEE 1159, IEEE 519:2014, IEEE 1459, and more. Equipped with 8 independent channels, automated setups provide instant detection of circuits and configurations, ensuring that the instrument is ready to successfully collect data in seconds. Users can select the length and mode of data collection, including troubleshooting, data logging, power quality surveys, energy, and load balancing. The Intelligent AnswerModule® feature provides consultant-like analysis of sag directivity, capacitor switching transient identification/directivity, and motor analysis/reporting.

The Dranetz HDPQ Xplorer Plus enables users to review data and change settings remotely from virtually any smartphone, tablet and mobile device, as well as with traditional PC and MAC laptops and desktops. Just hook up the instrument, close the cabinets to the ‘safe’ environment, and review data and control the instrument using either the VNC interface in our Dran-View 7 software or a free VNC client on your Smartphone or Tablet from anywhere with connectivity to the instrument.
