Anritsu MS46322B ShockLine™ Economy Vector Network Analyzer

  • 1 MHz to 8/20/43.5 GHz
  • Dynamic Range > 110 dB: 14 GHz to 43.5 GHz, typical
  • High Level Noise (100Hz IF BW): 0.001 dB, 20 MHz to 43.5 GHz, typical
  • Port Power: High state, +5 (-3) dBm; Low State, -20 dBm
  • Sweep Speed: 130µs/point
  • Number of data points: 2 to 16001
  • IF bandwidth: 10 Hz to 300 kHz
  • Remote control: LAN
  • Measurement parameters: Single ended S-Parameters: S11, S21, S12, S22; Mixed-Mode S-Parameters: SDD, SCC, SDC, SCD; User-defined combination: a1, a2, b1, b2, 1; Max Efficiency: kQ product, ηmax
  • Display Graphs: Log Magnitude, Phase, Group Delay, Linear Magnitude, Real, Imaginary, SWR, Impedance, Smith Chart, Polar, kQ product and ηmax
  • Limit Lines:  Single or segmented. 2 limit lines per trace. 50 segments per trace

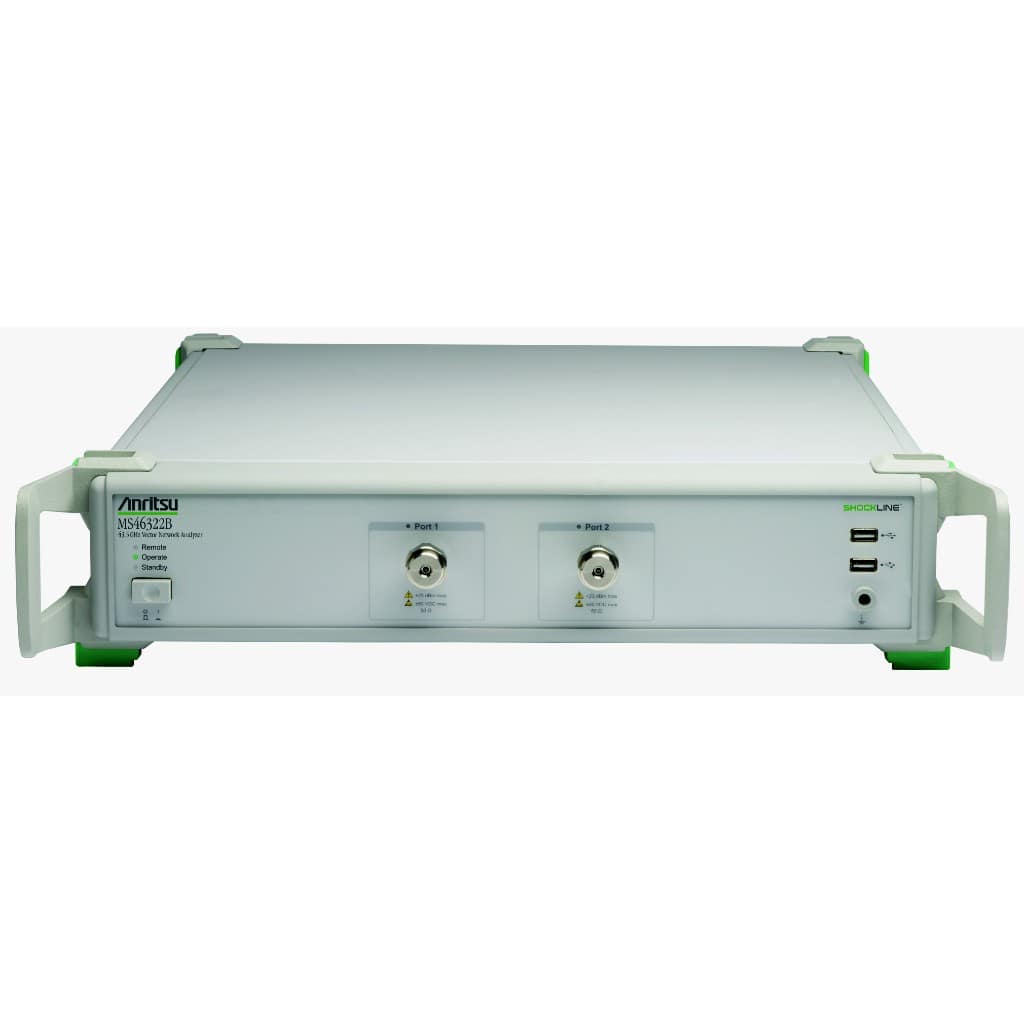

The ShockLine™ MS46322B series are economy vector network analyzers (VNAs) with frequency ranges from 1 MHz to 8/20/43.5 GHz. The series is based on Anritsu’s patented shockline VNA-on-chip technology, which simplifies the internal VNA architecture at high frequencies, reduces instrument cost, and enhances accuracy and measurement repeatability.

The ShockLine MS46322B series are all 2-port VNAs packaged in a self-contained, compact, and rugged 2U chassis that includes the power supply and computer. The entire series has 130 microseconds per point sweep speed and better than 100 dB dynamic range to 43.5 GHz, making it suitable for testing devices like millimeter-wave (mmWave) antennas and other passive 5G components in engineering, manufacturing, and cost-sensitive education applications.

ShockLine MS46322B VNAs integrate easily into rack-mount test systems due to their small size and remote programmability. They support SCPI command programming and software drivers for the most common programming environments. The whole family uses industry-standard LAN communications for remote control. ShockLine MS46322B VNAs provide a powerful graphical user interface (GUI) for manual testing of devices. The full-featured user interface is enabled by attaching a (user-supplied) touchscreen monitor, keyboard, and mouse.


RF and Microwave Passive Component Testing and Troubleshooting
  • RF and automotive connectors and cables
  • Electromechanical switches
  • Attenuators
  • Couplers
  • Filters
  • Isolators
  • Circulators
  • Phase Shifters
System Integration Applications
  • System Calibration
  • Path-loss Characterization
  • General s-parameters and time domain measurements
Wireless Power Transfer Applications
  • KQ product
  • Maximum efficiency
