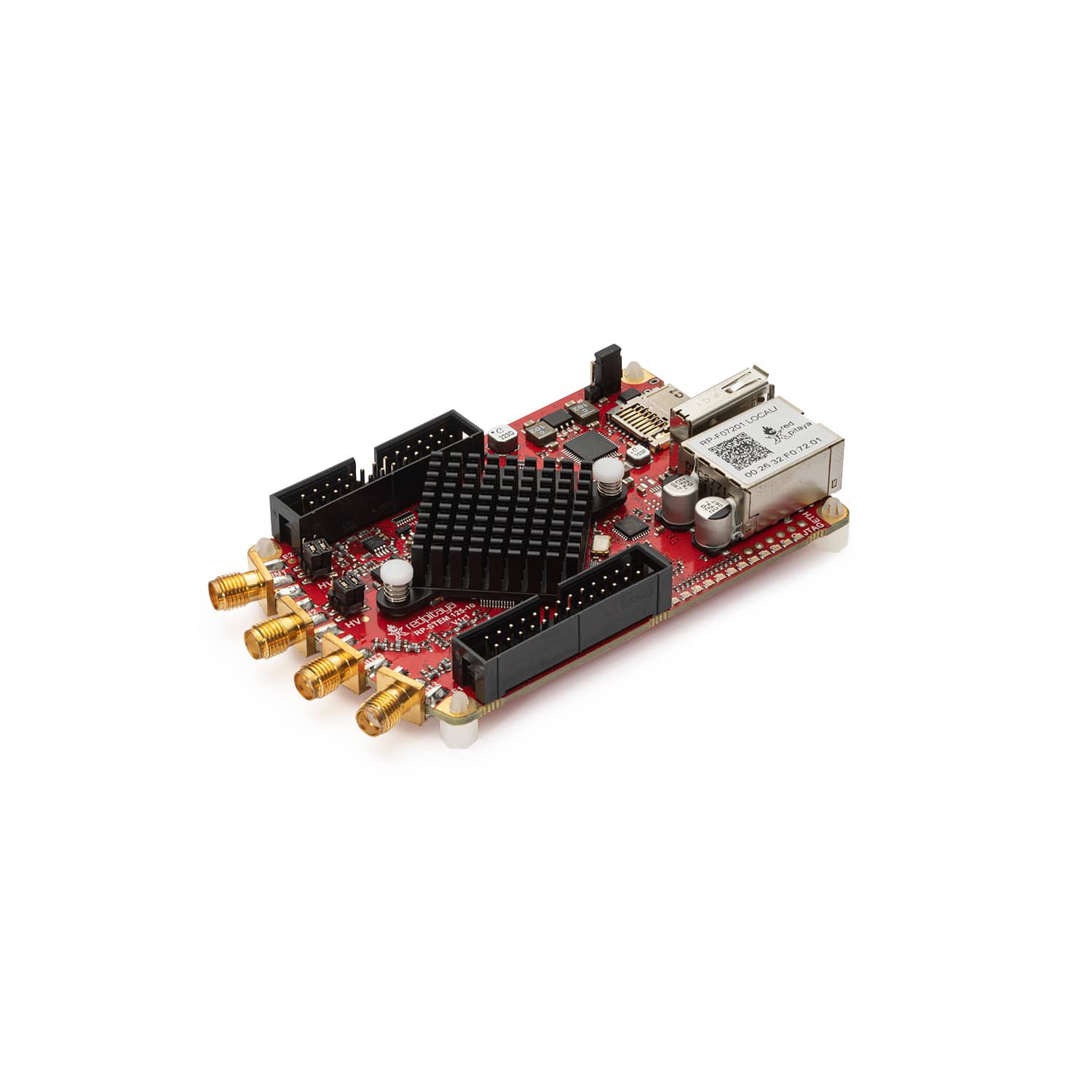

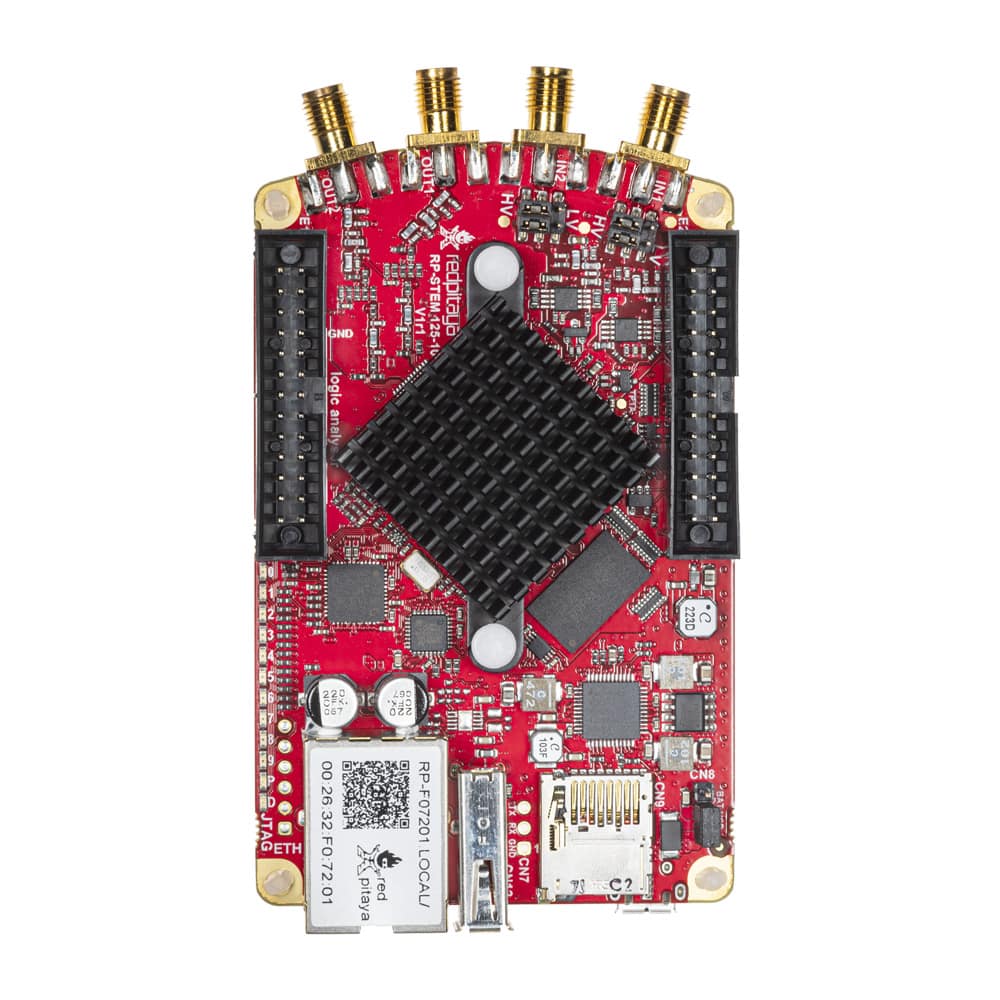

redpitaya STEMlab 125-10

Request more information
  • Credit-card sized RF signal acquisition & generation platform
  • Ethernet connectivity
  • Xilinx SoC (CPU & FPGA)
  • Two fast analog inputs & two outputs
  • Possibility of integration into own system/productOpen software source code available
  • Works with a Linux or Windows PC, can be used as an oscilloscope & signal generator, spectrum, Bode analyzer, logic analyzer, LCR meter*, SDR, or vector network analyzer*
  • Can be controlled remotely using LabVIEW, MATLAB, Python, or Scilab
  • An app marketplace with several free apps available

STEMlab 125-10 is Red Pitaya’s most affordable DAQ platform and therefore a perfect fit for education and hobby purposes or professional applications where cost optimization is an important factor. The device comes with solid performance due to 10bit 125Msps ADC and DAC & Xilinx Zynq 7010 FPGA and offers the same benefits as other Red Pitaya products. The main benefits are remote
accessibility, with a WEB app user interface accessible through Ethernet or Wi-Fi.
