AnaPico APVSG Vector Signal Generators up to 40 GHz

Request more information

• Frequency Range:  0.01 to 4, 6, 12, 20 or 40 GHz

• Frequency Resolution: 0.001 Hz

• Excellent phase noise performance and low spurious

• Ultra-fast switching and frequency hopping (< 200ns switching time)

• 500 MS IQ data rates, up to 256 MS deep internal playback memory

• Various digital modulation supported (FSK, PSK, ASK, QAM, I/Q, Pulse, Pulse trains, pulsed Chirps, wideband FM/PM)

• Sweeps: Complex lists, frequency/power/phase

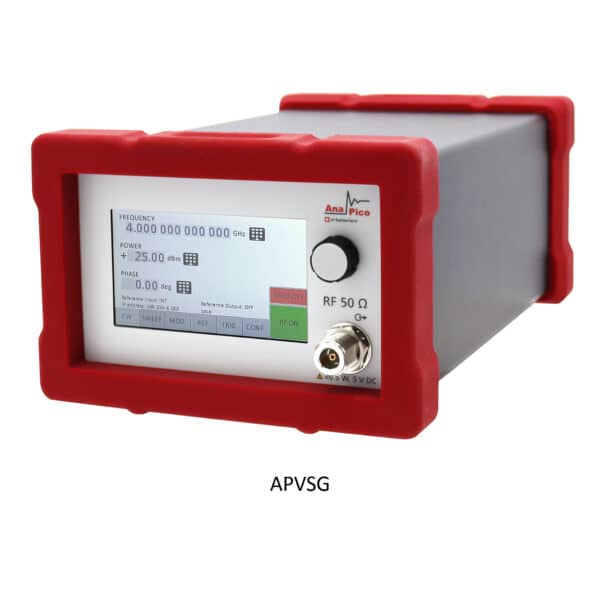

The APVSG is an ultra-fast-switching vector-modulated signal source, covering a continuous frequency range from 10 MHz to 4, 6, 12, 20 or 40 GHz. The standard APVSG enables outstanding ultra-fast CW frequency sweeping, chirping, intra-pulse modulation, pulse shaping, all with very low phase noise. A high performance internal I/Q modulator enables customized modulation waveforms and supports dedicated modulation schemes, including avionics modulation like (VOR/ILS, MODE S or DME). The device can be easily controlled by the touch-display or remotely accessed via Ethernet and USB using standard SCPI command language. A PC graphical user interface (GUI) is supplied to control the device and provide an easy-to-use interface for uploading pre-calculated IQ data files. The GUI supports various file formats.

The key features are:

  • High RF signal bandwidth: using a dual, arbitrary waveform generator operating at 500 MHz sampling rate for I/Q signal generation. The generator has built-in support for the common vector modulation schemes, and it provides direct support for the controlled injection of additive white Gaussian noise (AWGN) into the signal path.
  • Outstanding signal purity of modulated signals: lowest phase noise (-145 dBc/Hz at 1 GHz and 20 kHz offset), low spurious and excellent harmonic rejection
  • Excellent EVM and ACPR performance
  • Full set of built-in analog modulations like AM, FM, PM, Pulse
  • Ultra-narrow pulse trains (< 5 ns), linear and non-linear pulsed frequency chirps
  • Built-in digital modulation schemes like FSK, PSK, ASK, QAM
  • Ultra-fast frequency hopping and sweeping capability (update frequency, power and phase in below 200 ns)
  • Powerful trigger system including multiple markers and input triggers.
  • Fast control port (FCP) (parallel BCD interface) for fast external signal control
  • Security: external microSD available

The applications include:

  • Compact ultra-high performance vector signal generator IQ data streaming

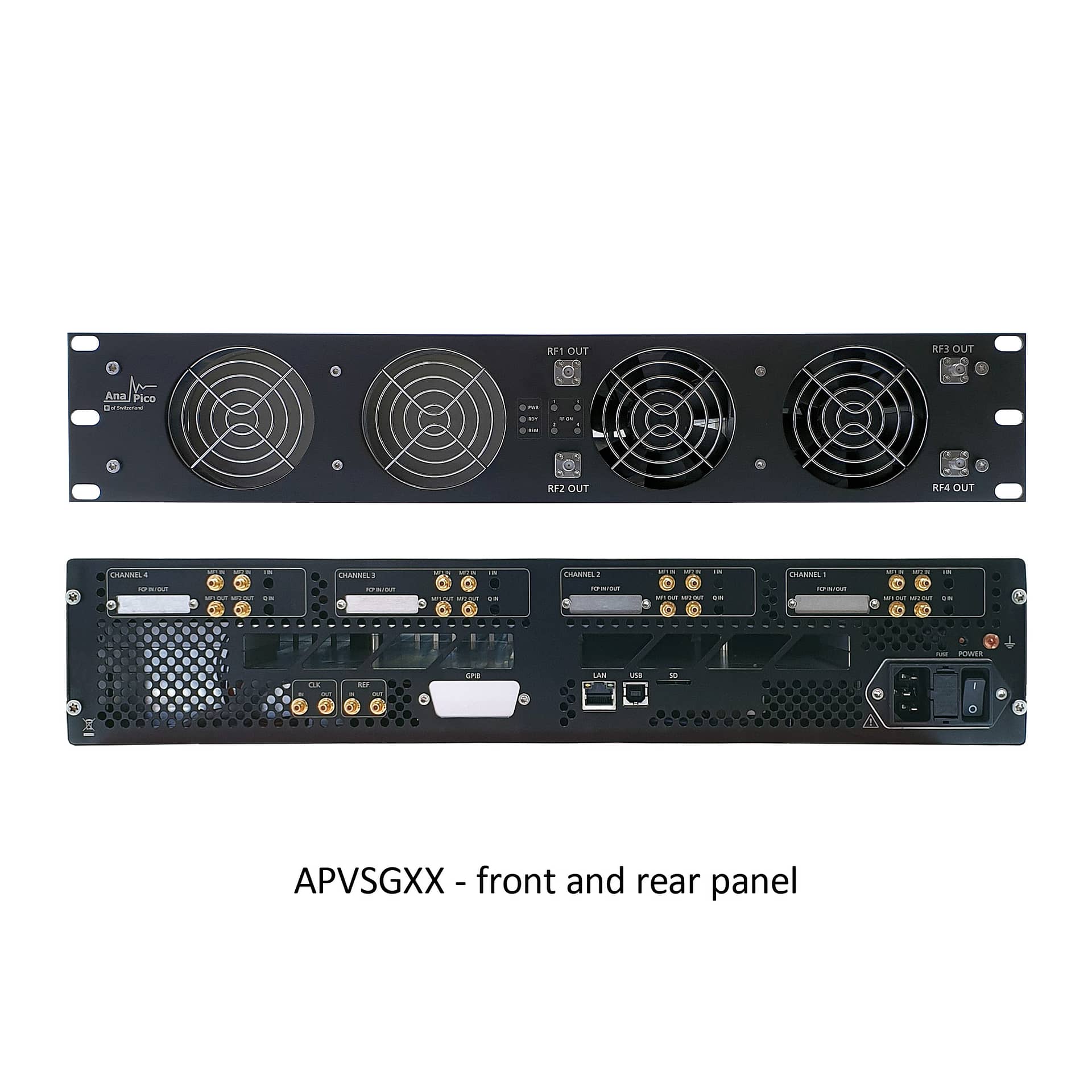

  • Phase-coherent independently programmable multi output configurations for phase array and antenna beamforming
  • Simulation of complex signal environments for radar, electronic warfare (EW) and antenna tests
